Cbb61 Fan Capacitor Switch Capacitor Cbb61 Speed Regulating Capacitor 350V 500V
| US$0.28 | 5,000 Pieces (MOQ) |
Basic Info.
Model NO.
CBB61
Packaging Type
Through Hole
Capacitance
1-150UF
Structure
Padder
Manufacturing Material
Polypropylene
Electrolyte
Air Medium
Usage
Tuning
Tuning
Polystyrene Capacitor
Filter
Liquid Tantalum Capacitor
Shell
Plastic
Transport Package
Catrton
Specification
CE, RoHS, SGS, GMP, TUV
Trademark
Argos
Origin
Zhejiang
Production Capacity
50, 000 PCS/Month
Product Description

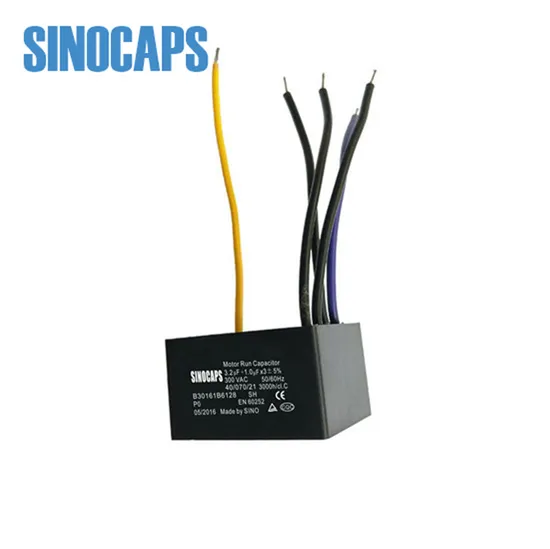

SINOCAPS Fan capacitor:
Detailed product description:
1. Used widely in motors, air conditioner, water pumps,air etc
2.High performance & Long life Capacitor.
3. Work well even in hot area
Main feature:
Low dissipation factor, small inherent temperature rise. Excellent self-healing stability, safety and high voltage withstand,etc.
Applications:
Used widely in washing machine, water pumps, air conditioner and as well household electric appliances etc. to start and run single phase motors in alternating current usage.
| Motor running capacitor: | ||
| Capacitance Range | 1μF~150μF | |
| Rated Voltage | 250VAC~500VAC(50/60Hz) | |
| Capacitance Tolerance | ±5% or Fulfilled upon request | |
| Loss Tangent | Tgδ≤0.002(50Hz-100Hz) | |
| Standard Temperature | -25ºC~+70ºC,-40ºC~+85ºC | |
| Climate Class | 25/70/21, 40/85/21 | |
| Test Voltage | Between terminals | AC≥2.00Un 2S NO BREAKDOWN |
| Between terminals and case | AC≥2000V 2S NO BREAKDOWN | |
| Insulation Resistance | Between terminals | Rj·C≥3000MΩ.μF |
| Between terminals and case | Rj≥1000 MΩ.μF | |
| Security Level | P0, P1, P2 | |
| Executing Standard | GB/T3667.1-2005, IEC60252-1:2001, IEC252 | |
