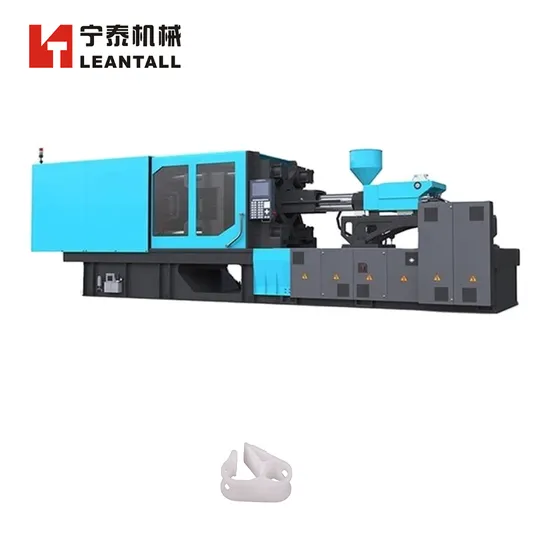

180t Leantall Benchtop Injection Molding Machine China Plastic Speed 94mm/Sec
Basic Info.
Model NO.
NT180
Type
Preform Injection
Structure
Horizontal
Plastic Type
Thermoplastic
Plasticizing Way
Plunger Type
Clamping Way
Hydraulic
Automation
Automatic
Computerized
Computerized
Certification
ISO9001:2008
Marketing Type
Hot Product
Core Component
Motor, PLC
Material
Stainless Steel
Applicable Industrial
Manufacturing Plant
Voltage
380V/50Hz 3p+N+E(Alterable)
Function
Plastic Parts Production
Mold
Can Be Customizable
Clamp Force
1800kN
Space Between Tie Bars
525*465
Transport Package
at Seller′s Option
Specification
5.4m*1.4m*2.3m
Trademark
Leantall
Origin
China
Packaging & Delivery
Package Size
540.00cm * 140.00cm * 230.00cm
Package Gross Weight
5400.000kg
Product Description
Product Parameters
| Part | Name | Unit | NT180 | ||
| Injection Unit | SCREW DIAMETER | mm | 42 | 45 | 50 |
| SCREW L/D RATIO | L/D | 21.4 | 20 | 18 | |
| INJECTION STROKE | mm | 225 | 225 | 225 | |
| NJECTION SPEED | Mm/sec | 94 | 94 | 94 | |
| SHOT VOLUME(THEORETICAL) | CM3 | 312 | 358 | 442 | |
| INJECTION WEIGHT(PS) | g | 284 | 326 | 402 | |
| INJECTION PRESSURE | Mpa | 218 | 190 | 154 | |
| INJECTION RATE | cm³/sec | 130 | 149 | 184 | |
| SCREW SPEED | rpm | 210 | |||
| Clamping Unit | CLAMP FORCE | Kn | 1800 | ||
| OPEN STROKE | mm | 435 | |||
| SPACE BETWEEN TIE BARS | mm×mm | 525X465 | |||
| MAX.MOULD HEIGHT | mm | 550 | |||
| MIN.MOULD HEIGHT | mm | 180 | |||
| EJECTOR STROKE | mm | 129 | |||
| EJECTOR FORCE | Kn | 46 | |||
| EJECTOR NUMBER | N | 5 | |||
| Others | MAX.PUMP PRESSURE | Mpa | 16 | ||
| SEVRO DRIVE POWER | Kw | 22 | |||
| HEATING POWER | Kw | 9.9 | |||
| MACHINE DIMENSION(L*W*H) | m×m×m | 5.4*1.4*2.3 | |||
| MACHINE WEIGHT(ESTIMATE) | T | 5.4 | |||
Product Description
Packaging & Shipping
Company Profile
Our Advantages
Q: Are you manufacturer or trading company? A: We are manufacturer with decades experiences,located in Zhejiang province. Q: What is the product range? A: Focus on the manufacture and development of plastic injection molding machines and its auxiliary equipment such as cooling tower, chiller, etc. Q: Where is your main selling market? A: We have business domestic,USA,Russia,Indonesia,Egypt,Turkey ,Uzbekistan, Pakistan,etc. Q: Will you offer field installation and operator training at the buyer's factory? A: Yes,we will arrange our skilled engineers for filed installation and training. Q: What is the delivery time(equipment production time)? A: It will be ready around 50 days after getting mutual confirmation about the order details and prepayment. Q: Do you also have source for molds and spare parts? A: Yes,we can offer with the competitive quality and reasonable price. Customized as required. Q: What is the standard of package? A: Wooden case packing for the auxiliary equipment, bare packing for the plastic injection molding machine. Full container shipment is highly suggest.
