Jianke MR325 32mm High Precision 5 Axis Swiss Type CNC Lathe Sliding Headstock Lathe Longitudinal CNC Lathe
Basic Info.
Model NO.
MR325
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.003
Performance Classification
Economical CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
CNC System
Syntec
Transport Package
Waterproof Wood Box
Trademark
Jianke
Origin
China
Product Description
Product Description| Jianke MR325 32mm High Precision 5 axis Swiss type cnc lathe Sliding Headstock Lathe Longitudinal CNC Lathe | |

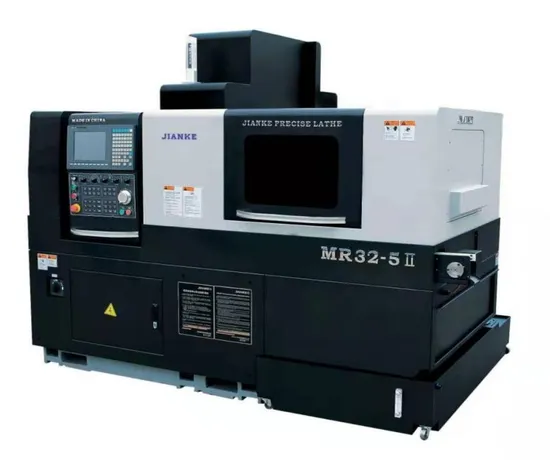

| Swiss type CNC lathe double spindle 5 axis model MR32-5II | Main spindle & Sub spindle |
| ·excellent performance·ability powerful·Operate flexbile | ·Main and sub spindle C axis stantard configration,complete functions ·Excellent performance multi types of tools coordinate reasonably,multi tool frame rasonably option ·rotary guide sleeve,no guide bush freely option, save material high benefit. |
Detailed Photos
Product Parameters
| Double spindle Swiss CNC lathe MR32-5II | |||
| System | Taiwan SYNTEC | Syntec210TB-A | |
| Control channel | Double channel | ||
| Minimum setting unit | 0.001mm | ||
| Machining | Max processing diameter | 32 mm | |
| Max processing length at one time | With guide bush | 260mm | |
| Without guide bush | 1:2.5D(Dia:Lenth) | ||
| Main spindle max drilling Dia | Main spindle axial | Φ13mm | |
| Φ10mm | |||
| Φ7mm | |||
| Main spindle max tapping Dia | Main spindle axial | M12 | |
| M8 | |||
| M6 | |||
| Power head max drilling Dia | Radial | Φ10mm | |
| Power head max tapping Dia | Radial | M8 | |
| Sub spindle max drilling Dia | Sub spindle axial | Φ10mm | |
| Sub spindle max tapping Dia | Sub spindle axial | M8 | |
| Tool | Tool seat arrangement | Upside tool seat | |
| Main spindle turning tool | 6 pieces | 6 pieces 16X16mm | |
| Main spindle side roatry power head | 5 pieces | 5 pieces ER16 | |
| Main spindle end face fixed tool seat | 4 pieces | 3 pieces ER11/ER16+1 piece ER20 | |
| Sub spindle end face fixed tool seat | 4 pieces | ER11/ER16 | |
| Main Spindle | Main/sub spindle type | Built-in oil-cooled electric spindle | |
| Main/sub spindle speed | 8000rpm/min | ||
| Main/sub spindle index | 0.001° | ||
| Main/sub spindle hole Dia | 34mm | ||
| Main/sub spindle center height | 1060mm | ||
| Motor power | Main Spindle power (rated/maximum) | 3.5kw/6.0kw | |
| Sub Spindle power (rated/maximum) | 3.5kw/6.0kw | ||
| Side rotary head motor power | 1.7kw | ||
| Side rotary head speed | 5000rpm/min | ||
| No. of moving axis | 5 axis | X1,Y1,Z1,X2,Z2 | |
| Rapid feeding speed | 24m/min | ||
| Moving axis motor power | 0.75kw | ||
| Other | Parts receive device | Short bar | Parts conveyor collect parts |
| Long bar | Sub spindle backside collect parts | ||
| Power capacity | 20kw | ||
| Air pressure | Above 0.4MPa | ||
| Cutting oil tank capacity | 286L | ||
| Machine size(L*W*H) | 2.47m×1.6m×2.0m | ||
| Lathe Weight | 3880KG | ||
Certifications
Packaging & Shipping
Company Profile
Founded in 1999, Jianke Machinery Co., Ltd. is one of the earliest domestic enterprises that involve in the independent research and development of Swiss type precision CNC lathe. The company covers an area of 30,000 square meters. At present, Nanjing Jianke Machinery Co., Ltd. has gradually developed into a machinery manufacturing enterprise integrating R&D, design, manufacturing, sales, installation, service, and imp&exp.
