Full Automatic Sauce Cooking Machine Industrial Jacket Kettle for Jam Chilli Halwa

Product Description

Introduction
The jacketed kettle also referred to as a stir-fried pot and boiled pot, is comprised of a pot and feet. The pot body consists of a double-layer structure, with an inner and outer spherical pot body. This kettle boasts several notable features, including a large heating area, high thermal efficiency, uniform heating, short boiling time, easy-to-control heating temperature, aesthetically pleasing appearance, effortless installation, and convenient operation.
Application
The jacketed kettle finds extensive application in the processing of various foods. Additionally, it can be utilized in large restaurants or cafeterias for boiling soup, braising, stewing meat, cooking porridge, making jam, chili sauce, and more.

Classification It is classified by the heating method: Electric heat transfer oil heating, Gas heating, Steam heating , Electromagnetic heating. Classified by support structure: Vertical type and tilting type.
The vertical type which can't be tilted Tilting type which can be tilted to discharge
Classified by automatically stirred or not: Without stirring type and with stirring type
Without stirring type With stirring type
According to the stirring method, the stirring jacketed pot can be divided into an ordinary stirring type and a planetary stirring type.
Ordinary stirring jacketed pot Suitable for food with high water content
Parameters of different models(steam heating )

Model	Capacity	Dimension	Size of pot
FN-OS-70	70L	1000*870*800mm	Ø600mm depth 420mm
FN-OS-100	100L	1180*890*930mm	Ø700mm depth 470mm
FN-OS-200	200L	1290*1000*980 mm	Ø800mm depth 520mm
FN-OS-300	300L	1390*1090*1030 mm	Ø900mm depth 520mm
FN-OS-400	400L	1530*1190*1100 mm	Ø1000mm depth 620mm
FN-OS-500	500L	1590*1300*1200 mm	Ø1100mm depth 670mm
FN-OS-600	600L	1710*1390*1280 mm	Ø1200mm depth 720mm
FN-OS-800	800L	1900*1500*1350 mm	Ø1300mm depth 850mm
FN-OS-1000	900L	1290*1000*980 mm	Ø1400mm depth 900mm

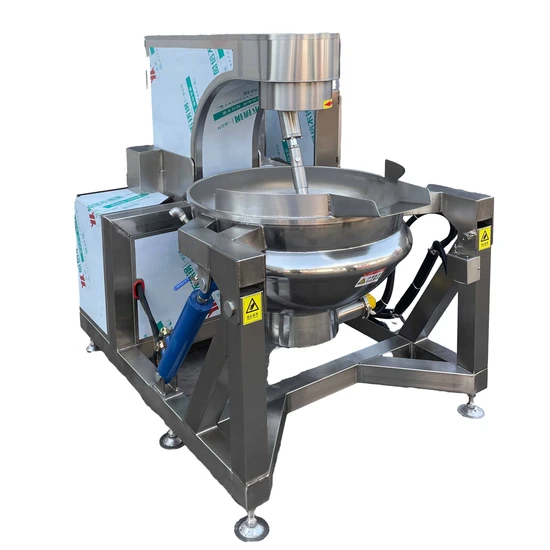

Planetary cooking mixer The Tilting Syrup Sugar Gas Cooking Mixer Jacket Kettle with Agitator is equipped with a planetary stirring mechanism that ensures thorough mixing of ingredients without any sticking to the pot. This feature is particularly beneficial when working with thicker sauces such as chocolate sauce or jam.
In terms of discharge type, this product can be classified into two categories: manual discharge type and automatic discharge type.


Manual discharge type Hydraulic automatic high-level discharge
Parameters of different capacity(gas heating )

Model	Capacity	Dimension	Size of pot
FN-PS-100	100L	1560*990*2050mm	Ø800mm
FN-PS-200	200L	1600*1000*2100 mm	Ø900mm
FN-PS-300	300L	1680*1250*2150 mm	Ø1000mm
FN-PS-400	400L	1780*1350*2150 mm	Ø1100mm
FN-PS-500	500L	2000*1700*1650mm	Ø1200mm
FN-PS-600	600L	2100*1900*1700mm	Ø1300mm

FAQ
1. How much experience does your factory have in production?
We have a solid 10 years of experience in manufacturing food machinery.
2. What is your main product?
Our main products include production lines for frozen French fries and potato chips, vegetable and fruit processing, hamburger patty and chicken nugget coating, sterilization and pasteurization, as well as jacket kettles.
3. Is your company a direct manufacturer?
Yes, we are a professional food machinery manufacturer with our own factory. In addition, we have dedicated sales, design, and development departments to ensure the best service and lowest prices for our customers.
4. How is your after-sales service system?
We offer a one-year free warranty and lifetime maintenance service after the first year. For products shipped overseas, we also provide installation, commissioning, and training services.
5. Can we visit your factory to inspect the machines closely?
We highly appreciate factory visits and will gladly accommodate your request.
