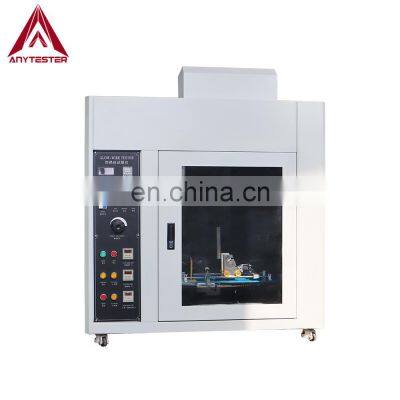

High Quality Digital Glow Wire Tester up to 1000 Degree

Product Description

Product Description
Product DescriptionAT802 Glow Wire Tester uses the specified material Ni/Cr(80/120) and shape wire to testing temperature (550℃~960℃) by large current in 1min, use specified pressure (1.0N) vertical iron the specimen 30s. Then observe if the specimen is ignited or burning time to determine the fire risk of electric product, insulation material etc.StandardUL 746AIEC60695.2~13, 60884-1, 829GB/T 5169.10~13, 4706.1, 2099.1DIN 695SpecificationModelAT802Glow wire4mm ± 0.04mm Ni/Cr(80/120)Glow wire temp.500 ℃ ～ 1000 ℃Test pressure1.0N±0.1NMax iron depth7mm ± 0.5mmSample moving speed10mm /s ～ 25mm /sTest time1s ～ 999.9sTest space0.5m3Background illumination≤ 20LxPower supplyAC220V, 50HzDetails & Features★ Using digital instrument control system, import control components;★ Fixture made of high quality stainless steel, corrosion-resistant, no rust;★ One-button time device, to facilitate the use of equipment, simple operation;★ Advanced temperature control and temperature measurement system, so that the test more accurate, the results more reliable;★ Tempered glass observation window, the entire test process can be observed Our CompanyHistorySince 1982 with more than 20 years’ experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most productPacking & DeliveryPackagingDimensions720×360×1450mmWeight85kgPackaging Details1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. PaymentPayment TermT/TEXW30% T/T in advance, paid the balance before shipmentFOBCFR(C&F)30% T/T in advance, paid the balance against copy of B/LCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 5000usdWest UnionDelivery Time7~10days after receiving payment for one containerContacting Us
