100L Cosmetic Face Cream Hydraulic Lifting Homogenizer Vacuum Emulsifying Mixer Machine with Water and Oil Tank

Product Description

100L Cosmetic Face Cream Hydraulic lifting homogenizer vacuum emulsifying mixer
machine with water and oil tank Vacuum Emulsifying Mixer

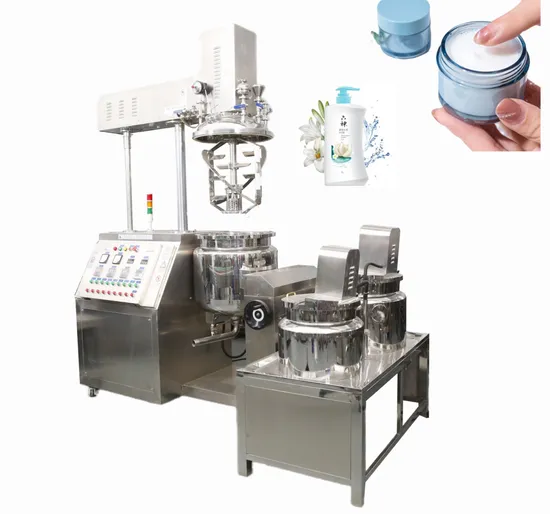

Vacuum emulsifier is professionally designed according to the ointment manufacturing process of cosmetics and ointments etc. Products through introducing advanced technology from abroad. The machine unit is composed of pretreating boiler, vacuum emulsifying and blending boiler , vacuum pump. Hydraulic system, dumping system , electric control system and work platform etc. The machine unit is featured by simple operation , stable performance, good homogenizing performance high production efficiency , convenient cleaning , reasonable structure , small land area and high automatic degree etc.

Model	Effective capacity (L)	Emulsifier		Agitator		Dimension(mm)				Total Power(KW)
		KW	R/min	KW	R/min	(L)	(W)	(H)	Max Height	Electric heat	Steam heat
JF-A-20	20	0.75	0-3000	0.37	0-40	1800	1600	1850	2700	9	3
JF-A-50	50	2.2	0-3000	0.37	0-40	2700	2000	2015	2700	25	5
JF-A-100	100	3	0-3000	1.5	0-40	2920	2120	2200	3000	27	9
JF-A-150	150	3	0-3000	1.5	0-40	3110	2120	2200	3100	27	9
JF-A-200	200	4	0-3000	1.5	0-40	3150	2200	2550	3100	40	12
JF-A-350	350	4	0-3000	2.2	0-40	3650	2650	2700	3600	50	16
JF-A-500	500	5.5	0-3000	2.2	0-40	3970	2900	3150	3950	50	16
JF-A-1000	1000	11	0-3000	4	0-40	3900	3400	3150	4550	100	30
JF-A-2000	2000	15	0-3000	7.5	0-40	4850	4300	3600	No rise and fall	120	30

Characteristics
1.The machine has triple blender, hydraulic lift cover , high-speed homogenizer (speed is 0-3500r/min,frequency speed regulation).
2.Fast-cutting vortex emulsification blender is used in the homogeneity part , which can scrape in alow speed and automatically blend and snuggle up to the bottom and wall of boiler .
3.The machine draws power material by the way of vacuum in order to prevent the powder flying .
4.The whole working procedure is operated in the condition of vacuum in order torevent the material coming int being bubble after high- speed blending and reach the request of sanitation and asepsis.
5.CIP cleaning system is equipped in this system.
6.The contact part of vessel and material is made from SUS316L material .Mirror finish of the inside surface is 300EMSH . In products of Germany Siemens Company .
Detailed Photos
Vacuum homogeneous emulsifying machine is a set of mixing, dispersion, emulsification and homogenization, powder absorbing functions in one integrated system, a control system, but also with the peripheral oil, water tanks, the use of vacuum, heating / cooling system. Is a special equipment for producing medicinal ointment, cream, lotion and other high-grade.The vacuum emulsifying mixer is mainly composed of water pot, oil pot, emulsifying pot, vacuum system, electric control system (PLC is optional), operation platform, etc.
Other prouducts
Productive Process
Packaging & Shipping
1. Package: PE film cover inside and then plywood case.
2. Accept terms: EXW, FOB, C&F, CIF, etc.
3. Shipping by Express, Air or Sea based on customers' requirements and lowest cost solution.
We will packs all of the machine and parts in the firm case that suitable for shipping.Machine packed by packed with seaworthystrong
wooden case as the general export package. We use carton as inner packing, in case of damage in the course of carriage,
we also can pack it according to clients' requirements.
Company Profile
We could also customize machines according to your demands, We could send our engineer to your factory to install machines and train your workers of operation and maintenance.We offering Turnkey service from A to Z to customers, we will can suggest customer the most suitable machines according to their Formula, Raw material. Support you Manufacturing- Installation- Training- Maintenance- Technical Support. We could also customize machines according to your demands, We could send our engineer to your factory to install machines and train your workers of operation and maintenance.
Certifications
MATERIAL SOURCES OF PARTS 80%of the main parts of our products are provided by world's famous suppliers. During long-term cooperation and exchange with them,
we have accumulated much valuable experience, so that we can provide customers with high quality products and more effective guarantee. FAQ
1. About Delivery term
Q: What's the delivery term for doing business with you?
A: EXW/FOB/CIF/DDU… it depends on preference of clients.
2. About Lead timeQ: What's the leading time after placing order?A: After getting your confirmation, mixing tank about 25 days, pump 15 days, colloid mill 10 days. However, it depends on production schedule is in slack or peak season, and the complication of machines.3. About Payment timeQ: What's the payment term?A: T/T 40% as down payment, 60% balance payment before delivery.4. About QualityQ: How do you control your quality?A: All machines before delivery will be tested and send video for customer, if no problem then arrange balance payment. Meanwhile,CE is available for customers' needs.5. About PackingQ: How do you pack the machines?A: Standard export wooden case, to avoid damage during delivery.6. About CustomizedQ: Can you produce according to the samples?A: Yes,we can produce by your samples or technical drawings.We offering Turnkey service from A to Z to customers, we will can suggest customer the most suitable machines according to their Formula, Raw material. Support you Manufacturing- Installation- Training- Maintenance- Technical Support.
We could offer various kinds of machines and whole production line.(1) Cream, paste Products,
In cosmetic industry: face cream, body cream, washing cream, vaseline etc In food industry : sauce, ketchup, tomato paste, mayonnaise, mustard, chocolate etc In chemical industry: welding paste, ink, paint, pigment etc. Production line for them: RO water treatment- vacuum emulsifying machine- storage tanks- filling machine-capping machine- labeling machine- conveyor belt- inkjet printer- sealing machine-shrinking machine etc
(2) Liquid productsshampoo, lotion, liquid soap, detergent, juice, solution etc.Production line for them: RO water treatment - liquid wash mixer- - storage tanks- filling machine-capping machine- labeling machine- conveyor belt- inkjet printer- sealing machine-shrinking machine etc
(3) Perfume products:
Production line for them: RO water treatment - Perfume freeze machine- - storage tanks- filling machine-cap locking machine- labeling machine- conveyor belt- inkjet printer- sealing machine-shrinking machine etc.
