Double Spindle and Double Channel CNC Lathe with Run Efficiently

Product Description

P26- double spindle and double channel CNC lathe with run efficiently
1. Dual spindle and dual cutting tools improve machining efficiency
2. It can process various ultra slender parts.
3. The power head meets the needs of milling and turning composite processing.
4. Reasonable layout, compact appearance, and small footprint.

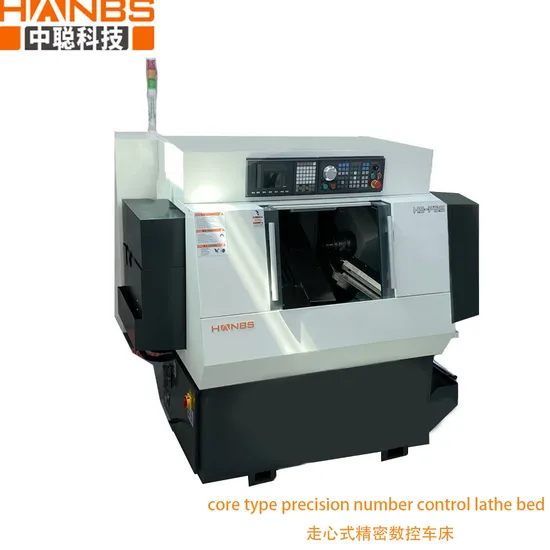

Product Photoes
Product Information

Processing parameters	Maximum processing diameter	φ26mm
	Maximum machining length 2.5D	50mm
	Maximum axial drilling diameter	M10mm
	Maximum axial tapping size	M8
	Max. spindle speed (short time)	10000rpm
	Max. back spindle speed (short time)	12000rpm
	Max. workpiece removal length	40mm
Maximum stroke	X1 axis	375mm
	Z1 axis	180mm
	X2 axis	375mm
	Z2 axis	180mm
Cutting tool	Size of cutter plate	390mm
	Maximum number of tools	8
	Tool (turning tool)	φ16X16
	Sleeve	φ25
	Height from tool plate holder to spindle centre	45mm
Collet	Spindle collet	HB26
	Back spindle chuck	HB26
Feed rate	X1/X2 axis feed rate	15m/min
	Z1/Z2 axis feed speed	15m/min
Motor	Spindle drive power	2.5/3.7KW
	Back-axis drive power	1.5/2.5KW
	X1 X2 Z1 Z2 power	1.1KW
	Cutting oil	0.4KW
Other	Spindle centre height	1010mm
	Air pressure flow	0.7mpa 0.5m3/min
	Main breaker capacity	40A
	Input power	5.4KW
	Weight	2700Kg
	Dimension	1950X1455X1700mm

Factory
Customer photoes
Packing & shipping
Examples of processed products
Certifications

Product Uses

The following are four specific application scenarios of NCN Lathe:
New energy vehicles
medical treatment
Communication accessories
Household appliances
Electronic cigarette
Precision component processing
hydraulic pressure
Pneumatic
Q&A
1.What is your minimum order quantity and warranty period?
The minimum order quantity is one set, and the warranty period is one year.
2.What brand of bearings do you use?
Japan NSK
3.When is the delivery time?
We will ship within one month after receiving your payment. There is not much stock available, so place your order now and we will prepare it for you in advance!
4.How to handle the warranty period?
During the warranty period, due to product quality issues, our company is responsible for free repairs. If parts need to be replaced, we are responsible for free replacement. If the machine problem does not belong to our machine quality issue, we will charge appropriate fees when the buyer requires us to send engineers to provide repair services.
5.Can you provide customized machines? Yes, we can design and manufacture according to your specific requirements.
6.Do you have professional engineers? Yes, we have professional engineers and designers.
7.Does your company provide professional training? Yes, we provide training and teaching or use video teaching.
8.How can I choose the most suitable machines? You can contact our customer service, and please provide your product details and requirements, then we will help you choose the most suitable machine based on your information.
9.What is your terms of delivery? FOB
10.What is your terms of payment. T/T,D/P,We'll show you the photos of the products and packages before you pay the balance.
