Brand New 5 Ton Hydraulic Customized 400 Degree Slewing Knuckle Boom Offshore Deck Crane Marine Crane for Sale

Product Description

Product Description
Product Features
1.Advanced development & analysis means make sure design is very reliable.
2.Using two-section telescopic cylinder design, one of the cylinders push the second large boom, another cylinder
push the rest of the telescopic boom by the pulley block and wirerope. To ensure that the crane has strong lifting
capacity in the middle distance and effectively protect the wire rope in the boom.
3.The more symmetrical center design of pentagon & hexagon boom make it has bigger anti-bending capacity.
4.compact boom head and tail design, make the longest boom length, prolong the working life of the crane.
5.The integer lifting winch improved the work efficiency greatly and prolonged work life of hydraulic system.
Boom head adopting integral structure, greater intensity.
6.Split head design reduces the boom head carrying capacity.
7.Self-design & developed slewing machine with greater drive force can meet varied requirements of working situation.
8.Lifting mechanism hydraulic winch relies on disc spring and friction brake, stable and reliable, efficient, low noise,
small calorific value; Rely on hydraulic balanced valves balancing weights when falling, greatly improve product reliability.
Product Display
Product Parameters
Product Drawing

Item	Unite	SQ5ZA2T
Max lifting capacity	Kg	5000
Max lifting height	m	9.8
Max lifting moment	ton.m	10.5
Recommend power	KW	18.5
Hydraulic system flow	L/Min	25
Hydraulic system pressure	MPa	28
Oil tank capacity	L	90
Self weight	Kg	1600
Rotation Angle	°	360

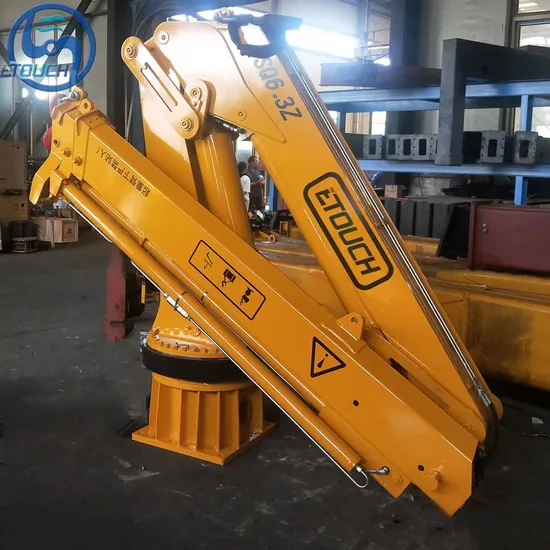

Detailed Photos
Packaging & Shipping
Export standard packaging and shipped by sea
Company Profile Take photos with customers
Our Company
SHANDONG E-TOUCH SHIPPING ENGINEERING CO., LTD. was established on 2010 as professional manufacturer, onestop
purchase and service supplier for cutter suction dredgers, service ships, sand washer, sand pump, dredging equipment, pipelines
and different OEM dredging components with European standard. In recent years, we have delivered decades of dredgers with
accessories to 28 countries under BV / ITS / SGS quality inspection.E-TOUCH also provide technical consult for dredging project.
we give support on dredging analysis, operation and maintenance to help our customers improving their working efficiency to get
high rate profit return......
Our servies Maintenance and Support:
*12 months manufacturing warranty on all new installed component parts.
*12 months warranty on engine.
*12 months warranty on hull and all fabricated parts.
