Steel Frame Meat Transfer Pump Lamella Pump

Product Description

Product Description

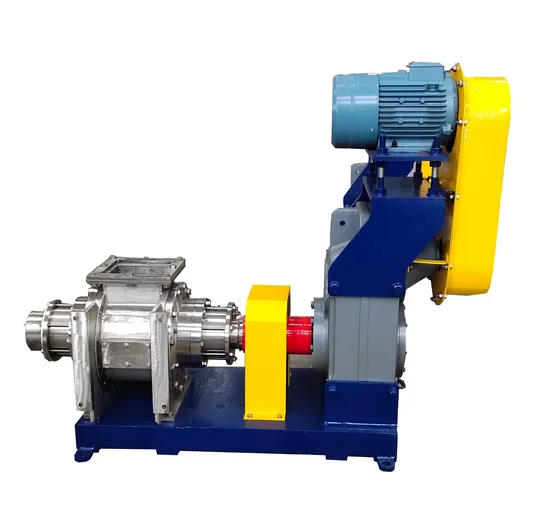

The Lamella Pumps transports raw materials with high viscosity index, such as offal and broken bones, from whole transport bodies (except feathers) taken from pigs, cattle or poultry and fish. The conveying is done in the pump, and the blades rotate, resulting in a positive offset. The Lamella pump system requires only one drive to transport large amounts of materials over long distances.
The Lamella pump is a high capacity pump, but it has low energy consumption compared with traditional conveying systems such as screw conveyors.
The outstanding performance of Lamella Pump is thanks to its unique impeller blade design. The Lamella pump can move up to 200 cubic meters(7,062 cubic feet) of viscous raw material per hour,Suitable for batch or continuous rendering operations. The frequency conversion motor has a precise flow rate control, with automatic reverse function to help clear any obstacles. The Lamella pump can work with screw conveyor, screw hopper, silo and other equipment.

Product Parameters

Model	Type/Unit	LP25	LP35	LP45
conveying capacity	m3/h	48	105	270
Max. Rotating speed	rmp	80	70	60
Lift	m	10	25	75
Torque	Nm	4000	7000	15000
Weight	kg	390	550	915
Max. Size of solid	mm	65	85	135
Pipe connection	mm	150	250	350

Packaging & Shipping
1) Carefully check the quantity and quality of equipment before packing. 2) Good packed by plastic wrap. 3) Fittings and spare parts are packed in wooden pallet . 4) Suitable for export transport and sea freight 5) Add labels and shipping mark.


Company Profile
Jiangsu stord Works Ltd. Located in Fangqiao National Machinery Industrial Park, at the Taihu Lake, Yixing City, Jiangsu, China, which is home to more than 180 employees , covers an area of 25000 M2 and has more than 70 various manufacturing and testing devices, with the maximum lifting capacity of 100T and the maximum plate rolling capacity of 120mm.
StordWorks has the specialized drying machine production workshop and advanced machining centers. We also have various international pressure vessels certification and abundant experiences in equipment manufacturing, such as National standard pressure vessel certification, American ASME certification, Norske Veritas DNV certification and EU PED certification.
Jiangsu StordWorks adheres to the business philosophy of "Focusing on Professionalism & Quality First", and the service concept of "Customer-orientation and Exceeding Customer Satisfaction". By means of our excellent quality and perfect service, JiagnsuStord Works Ltd. sincerely looks forward to cooperating with you!
Certifications
Our factory has acquired the certificate of Quality management system ISO9001,ISO14001, Manufacturing license of pressure vessels, the manufacture certificate of boiler pressure vessel issued by ASME U stamp and NB certificate, PED certificate ,DNV certificate and so on.
Our service
Before selling service:
1. Offering professional one-on-one service and replying your E-mail within three hours
2. Supply operation video & instruction documents to you.
3. Supply competitive price.
4. Test and adjust machine, and let you can use it directly when you get it.
5. 100% QC inspection Before Shipment.
6. 24 hours hot line service.
After sales service:
1. Provides technical support and fittings for life. We will solve your problems on time. If you arecaught in some problems .
2. Supply all kinds of frequently used parts all the year.
3.Any problems occur while using, professional technical support and maintaining will be offered.
4. When using our products, welcome to contact us at any time.
