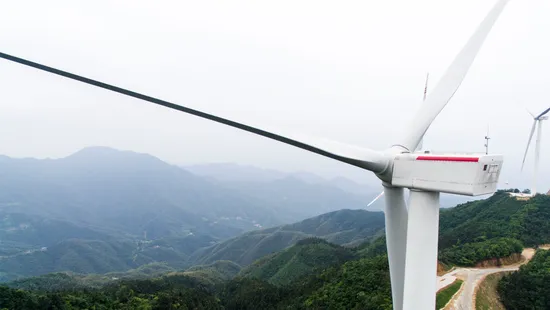

164m Se16445 Si-16450 Wind Turbine Generator for Sale

Product Description

Product Description
Product Parameters

Generator	SE16445/SI-16450
Cooling System	Forced air cooling system
Frequency	50Hz
Type	DFIG
Voltage	690V
Main Parameter
Ambient Temperature Range-general	-20ºC ~ +50ºC/ -40ºC ~ +50ºC
Ambient Temperature Range-operation	-10ºC ~ +40ºC/ -30ºC ~ +40ºC
Cut-in Wind Speed	3m/s
Cut-out Wind Speed	22m/s
Design Class	IEC S
Rated Power	4500/5000kW
Rotor
Power Control	Variable speed Variable pitch
Rotor Diameter	164m
Swept Area	21124m²
Tower
Hub Height	100-140m
Material	Steel
Transmission Chain
Gearbox	Two-stage planetary One stage parallel gearbox
Yaw System
Braking System	Hydraulic disc brakes
Type	Active yaw control
