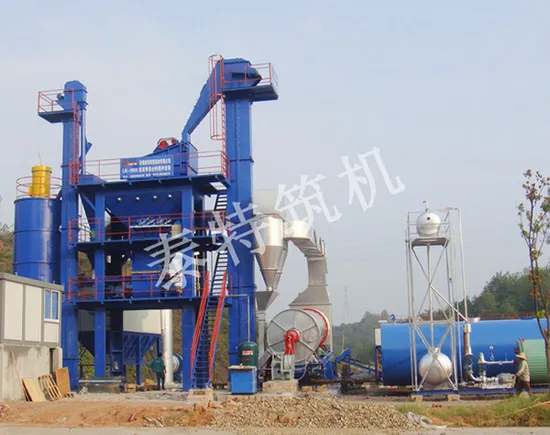

Specialized Manufacturer Lb-1500 Asphalt Mixing Equipment

Specialized Manufacturer Lb-1500 Asphalt Mixing Equipment

US$10,000.00-200,000.00 1 Set (MOQ)

Basic Info.

Model NO.
LB-1500
Type
Concrete Mixer
Certification
Shqc, Lqa
Condition
New
Rated Productivity(T/H)
80-120
Mixing Tank Capacity(Kg/Batch)
1500
Total Installed Capacity (Kw)
410
Total Floor Area (M×m)
45*36=1620
Consumption Rate (Kg/T)
<=6.5
Type of Fuel
Diesel, Heavy Oil, Natural Gas
Product Temperature (ºC)
140-160
Aggregate Measurement Accuracy (%)
<=0.3
Asphalt Metering Accuracy(%)
<=0.1
Powder Measurement Accuracy (%)
<=0.2
Oil Stone Ratio Deviation (%)
<=0.1
Ambient Noise [dB(a)]
<=80
Operator Ear Noise [dB(a)]
<=70
Dust Removal Method
Compartmented, High-Voltage Pulse Bag Type
Dust Emission Concentration [Mg/Nm3]
<=100
Transport Package
Container
Trademark
Taite
Origin
China

Product Description

Product introduction:
Compact overall layout, novel structure, independent innovation and absorption of international advanced technology, excellent performance.
Advanced microcomputer control system, PLC module can achieve automatic, semi-automatic, manual joint control and single control. Simulation screen real-time dynamic display, full range of fault self-diagnosis.
The whole machine adopts electronic measurement. The advanced double-stroke measuring method has automatic compensation function and high measuring accuracy.
Unique environmental performance, fully sealed, low noise, dust emission standards.
The core components are assembled with imported components to fully ensure the reliability of the entire equipment.
The production capacity is 160 tons per hour.
THE MAIN TECHNICAL CHARACTERISTICS:
content/type
LB-1500
Rated productivity(t/h)
80-120
Mixing bar capacity(kg/batch)
1500
Total installed capacity
(Finished product warehouse is not included)(kw)
410
Total floor area(m×m)
45×36=1620
Fuel consumption rate(kg/t)
≤6.5
Type of fuel
diesel fuel,heavy oil,natural gas
Finished material temperature(ºC)
140-160
Cumulative measurement accuracy of ore materials(%)
≤±0.3
Measurement accuracy of asphalt materials(%)
≤±0.1
Powder metering accuracy(%)
≤±0.2
Oil-stone ratio deviation(%)
≤±0.1
Stable and accurate discharge temperature(ºC)
±5
Ambient noise[dB(A)]
≤80
Noise in the operator's ears [dB(A)]
≤70
Dust removal method
Compartment, high-pressure pulse bag
Dust emission concentration[mg/Nm3] ≤100

Company Introduction:
Wuxi Taite Road Construction Machinery Co., Ltd. is located in the scenic Taihu Lake, Mountain feet, a stone's throw away from the Sunan International Airport, and south Beijing-Hangzhou Grand Canal, west of State Road 312 and the Beijing-Shanghai intercity high-speed railway, adjacent to the Taihu Lake high-speed, traffic is very convenient, excellent location of the ground; company is located in Yangtze River Delta, Wuxi New District Shuofang Industrial Park, the region's economic activity, information fast, accessible at home and abroad with technical support and product support capabilities to build road maintenance machinery and equipment as the representative of the product, has focused on the development of the contemporary trend of industrial modernization. Building company is the earliest professional manufacturer of road maintenance equipment.
Certifications:
Shipping photos:
