High Efficiency Max. 32m Fire Fight Truck Yt32m2 Water Tank

Product Description

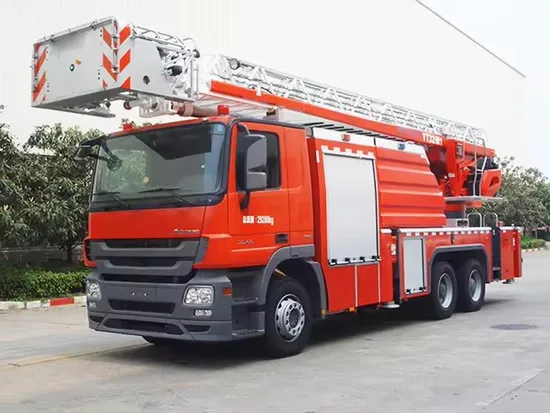

Products Description China Famous Brand Max.32M Big Fire Truck YT32M2 YT32M2 aerial ladder fire truck focuses on the design, development and manufacturing technology of upper structure ladders, leveling control technology of turntables, double helix twin-rotation winding and telescoping technology, multi-state operating curve control technologies, and independent work platform leveling control technologies, etc. , is urban fire control main battle vehicle integrating the functions of rescue in the air and fire-fighting. With features of flexible, strong adaptive capacity of site, quick rescue speed and high technical security, it is widely used for fire-fighting and rescue operation of mid-rise buildings in cities and towns, mines, oil field and factories, it is the necessary equipment to put out fires in mid-rise buildings, rescue person in distress and property. Product Paramenters

Main performance parameters
Outline dimension (L×W×H)		11450×2500×3810mm
Max. total mass		29000kg
Max. travel speed		≥90km/h
Min. turning diameter		≤23m
Approach angle		≥16°
Departure angle		≥12°
Max. grade ability		≥25%
Outrigger span	Longitudinal span	5400mm
	Lateral span	5200mm
Load capacity of working platform		300kg
Max. working height		32m
Maximum working range		22m
Boom elevating range		Telescopic boom -12°~+75°
Slewing range		360° full-rotation
Outrigger unfolding time		≤25s
Time for boom raising to rated height and rotating 90°		≤55s
Max. slewing speed of turntable		0.5~1.5r/min
Fire pump	Rated flow	50 L/s
	Rated pressure	1.5 MPa
Fire monitor	Model	Zhangqiu PLKD48
	Rated flow	48 L/s
	Rated pressure	≤1.0MPa
	Reach	≥60m(water)	≥55m(foam)

Product Pictures Company Profile
