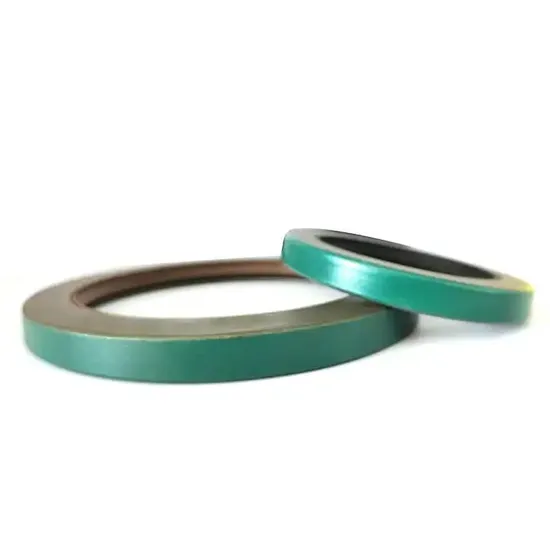

Chinese Factory Oil Seal Radial Shaft Oil Seals General Industrial Applications Oil Seals 13534

Product Description

Product Description Chinese factory oil seal Radial shaft oil seals general industrial applications oil seals 13534Oil seals are functional parts used to seal oil. Composed of synthetic rubber, metal rings and springs, they prevent the leakage of lubricants from gaps within machines and bearings. They also prevent the entry of dust from the outside.
Material: NBR,NR,Silicone, etc.Color: Black, brown, red or assigned color.Packing: Inner packing by plastic bags, outer packing by cartons.Delivery time: within 2 weeks after getting the deposit.Payment method: T/T or western union in advance, balance before shipment.Size: We have many mold size in stock now and we also can make it as per your requirements.Our main products: Main products: o-rings, reciprocating seal, rotating seal, mechanical seal, packing, gasket, repairing box and so on.The function of the skeleton oil seal is to isolate the parts that need lubrication from the output parts in the transmission parts, so as not to let the lubricating oil leak. It is usually used in the transmission parts.The rotary shaft is a rotary shaft lip seal. The skeleton acts as a reinforcing steel bar in concrete members and keeps the shape and tension of the oil seal. According to the skeleton type, it can be divided into internal skeleton oil seal, external skeleton oil seal, and internal and external skeleton oil seal. The skeleton oil seal is made of high-quality nitrile rubber and steel plate, with stable quality and long service life. Widely used in automobile, motorcycle crankshaft, camshaft, differential, shock absorber, engine, axle, front and rear wheels, and other parts.

Type	TC TB TA SC SB SA VC VB VA KC KB KA TCV TCN DKBI DKB TG4
Temperature	-35~+250ºC
Press	0~0.05MPA
Rotational Speed	0-25m/s
Medium	lubricating Oil, Grease, Water
Other material of oil seal	Silicone, NBR, Metal & Stainless Steel, PTFE, etc.
Production equipment	includes vacuum vulcanizing machines, large-scale flat vacuum vulcanizing machines,
	rubber machines, CNC machine tools, temperature-controlled ovens, and detectors
Application	High-pressure hydraulic seal auto rubber oil seal
	1. Fluid system (static & dynamic)
	2. Hydraulic system (dynamic)
	3. Pneumatic system (dynamic)
	4. Oil or grease media sealing
	5. Water media sealing
	6. automobile, motorcycle, industry, agricultural machinery, truck, buses, trailers,
	exercise equipment.

These are just a few of the sizes. And we can also custom the size of your requirements.
Please contact us to tell me your request.

SIZE	SIZE	SIZE	SIZE	SIZE
25*35*7	62*72*9	86*100*10	99*115*8	125*140*13
35*43*4	65*75*8	90*100*7	95*130*13	125*143*12
42*50*6	74*93*12	90*100*10	110*130*13	124*146*11
50*62*7	75*94*10	90*100*12	110*140*13	127*146*10
52*65*10	76*94*8	90*104*11	115*130*10	130*146*14
55*80*13	78*95*11	92*110*10	115*130*13	130*170*13
56*70*8	80*95*12	95*110*8	117*140*13	135*175*15
58*70*10	85*95*10	95*110*10	118*140*12	145*175*16
60*72*10	85*100*8	97*115*12	120*140*15	160*190*15

Different Type Rotary Shaft Oil Seal
Type	Material	Lip	Spring	Feature
TC	NBR & FKM	Double Lips	Single	Metal Coverd Rubber
TB	NBR	Double Lips	Single	Metal Case
TA	NBR	Double Lips	Single	Metal Case
SC	NBR & FKM	Single	Single	Double Metal Shell
SB	NBR	Single	Single	Metal Case
SA	NBR	Single	Single	Double Metal Shell
DC	NBR	Double Lips	Double	Double Springs
VC	NBR & FKM	Single	Without	Metal Coverd Rubber
VB	NBR	Single	Without	Metal Case
TCV	NBR	Double Lips	Single	High Pressure
TCN	NBR	Double Lips	Single	High Pressure
PTFE	PTFE	Single & Double Lips	Without	Stainless steel
HTCL	NBR & FKM	Double Lips	Single	Inside thread L
HTCR	NBR & FKM	Double Lips	Single	Inside thread R

Other material of oil seal: Silicone, NBR, Metal & Stainless Steel, PTFE, etc.Production equipment: includes vacuum vulcanizing machines, large-scale flat vacuum vulcanizing machines,rubber machines, CNC machine tools, temperature-controlled ovens, and detectors.Application High-pressure hydraulic seal auto rubber oil seal:1. Fluid system (static & dynamic)2. Hydraulic system (dynamic)3. Pneumatic system (dynamic)4. Oil or grease media sealing5. Water media sealing6. automobile, motorcycle, industry, agricultural machinery, truck, buses, trailers,exercise equipment.
Payment&Shipping
FAQ
Q. What is your standard packing? A: All the goods will be packed by carton box and loaded with pallets. Special packing methods can be accepted when needed. Q. What is the normal lead time for product orders?
A: Generally it is 1-2 days if the goods are in stock. or it is 5-10 days if the goods are not in stock, it is according to quantity. Q: Do you use any international standards for rubber products?
A: Yes, we mainly use ASTM D2000 standard to define the quality of the rubber materials, and tolerances as per ISO3302, ISO2768, etc. Q: What materials are available to produce from your side?
A: NBR, EPDM, SILICONE, FPM(FKM), NEOPRENE(CR), NR, IIR, SBR, ACM, AEM, Fluorosilicone(FVMQ), FFKM, Liquid Silicone, Sponge, etc. Q: Could you please tell us the month capacity of your products?
A: It depends on which model, we produce more than 2500 tons of rubber materials per month.
