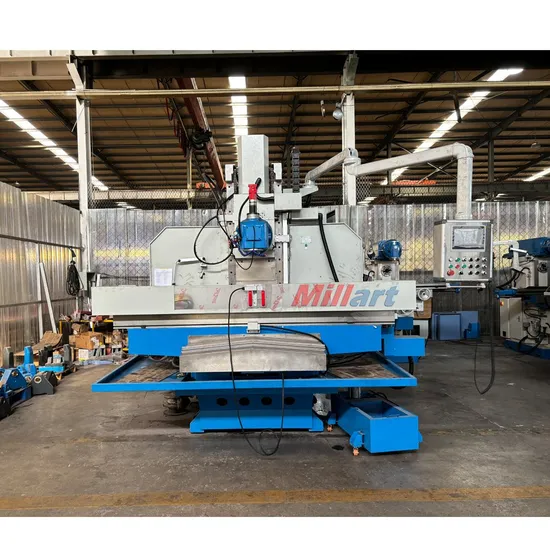

Large Universal Milling Machine, X715 Heavy Duty Bed Type Milling Machine

Product Description

Product Description
1,All guides are hardened, ground, and supplied with oil by a central lubrication unit
2,Universal swivel head swings easily to a horizontal position
3,Servo-motors on all axes, infinitely variable feed, rapid feed, and speed control
4,Electronic hand-wheels on all axes
5,Ball screw drive on all axes
6,powerful main motor

Product Parameters
Specification:

Specification	Unit	X715
Spindle hole taper		7:24 ISO50
Spindle speed range	r/min	2steps 6-300, 30-1500
Distance between spindle axis and column guideway	mm	610
Distance between spindle nose and table surface (V)	mm	10~650
Distance between spindle axis and table surface (H)	mm	8-660
Table size	mm	2100×500
T slots	mm	4/20/100
Table travel-X	mm	1500
Table travel-Y	mm	650
Table travel-Z	mm	600
Table feed-X/Y	mm/min	2.5~3000
Table feed-Z	mm/min	2.5~2500
Table rapid feed X/Y/Z	mm/min	6000/6000/3000
Main motor power(CTB)	kw	11kw or15kw(servo motor)
Cooling pump motor power	w	90
Torque of X/Y/Z axis AC servo motor	Nm	18/23/18
Overall size	mm	3220×2420×2800
Net weight	Kg	7300

Standard accessories:

Draw bar

IS050 Milling chuck

IS050 taper shell end mill holder

7: 24 middle cover

Oil gun

Foundation bolt

Allen wrench

Double-ended wrench

Certification

Packing list

Optional accessories:

Pneumatic tool clamping (Can only be used in end milling state)

Table cover

Machine Vice QM200mm
