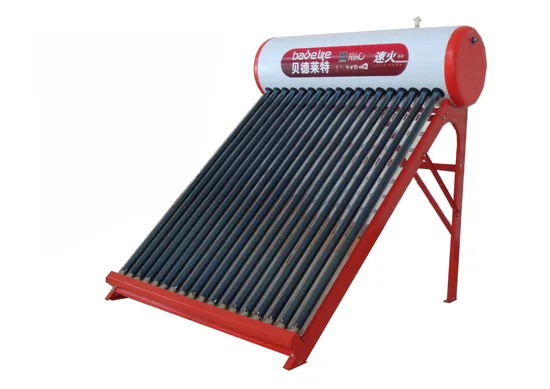

Solar Vacuum Water Heater
| US$100.00-600.00 | 3 Pieces (MOQ) |
Basic Info.
Model NO.
SPR
Pressure
Unpressurized
Interior Material
Stainless Steel
Collector Components
Glass Vacuum Tube
Composition
Tank, Insulation, Bracket, Glass Vacuum Tube
Certification
CE, ISO9001
Installation
Freestanding
Circulation Type
Direct / Open Loop (Active)
Transport Package
Carton
Specification
10tubes-36tubes
Trademark
SUNPOWER / OEM
Origin
China
HS Code
841919
Production Capacity
1500sets/Day
Product Description
| Type | SPR(Integrated Low Pressure System) |
| Outer Tank Material | Galvanized plate |
| Outer Tank Diameter | 460mm,470mm, 500mm |
| Inner Tank Material | Food grade SUS304 2B stainless steel plate or 316L stainless steel |
| Inner Tank Diameter | 360mm, 380mm |
| Tube Material | High quality borosilicate glass |
| Vacuum Tube Size(mm) | 58/1800 (diameter/length) |
| Tube Number | 8/10/12/15/18/20/24/30/32/36/40 |
| Frames (Stand Parts) | Galvanized plate |
| Insulation Layer | High quality polyurethane foam made by advanced high pressure foam machine |
| Insulation Thickness | 50mm,(outer tank 460mm),55mm(outer tank 470mm), 60mm(outer tank 500mm) |
| Hail Resistance | 25mm |
| Operation Pressure | 0.05Mpa |
| Standard Qualified | CE, CCC,Solar Keymark EN12976, SABS |
Our advantages:
Our products process:
