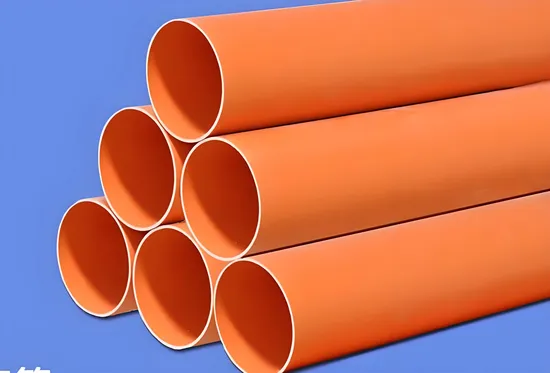

Durable CPVC Electric Power Pipe for Industrial Use and Wire/Cable Protecting Uses

Product Description

Product DescriptionPVC-C power pipes are made of PVC-C resin with excellent heat resistance and insulation properties. PVC-C products are currently recognized as green and environmentally friendly products, and their excellent physical and chemical properties are attracting more and more attention from the industry.
PVC-C power pipe is a hard straight solid wall pipe, the inner and outer walls are smooth and flat , the color is bright and eye-catching. High temperature mechanical strength, suitable for pressure occasions. The use temperature is as high as 90 ºC or so, the service life can reach 50 years, safe and simple. Low flame retardant, fire prevention, thermal conductivity, low heat loss of pipeline, low installation cost, belong to green building materials.
Product features1. High strength, light weight, generally 1/6 of steel pipe, 1/10 of cement pipe, light transportation and installation, no need for special equipment 2. Good flexibility, not easy to break, good shock resistance and uneven settlement resistance, greatly superior to traditional cement pipes and asbestos pipes. 3. Easy construction: Socket connection is adopted, and combined with combined brackets and other accessories to facilitate pipe construction and installation. Convenient and fast, can greatly shorten the construction period, and does not require pouring concrete protective layer, the overall project cost is low, with significant economic benefits.
4. Excellent heat resistance: The temperature of the cable core generated by high-voltage power cables during normal operation varies with the voltage. For example, when the temperature of the cable core transporting 110KVA voltage is transmitted to the casing, it can reach 65 ° C under normal conditions and 75 ° C under overload conditions. PVC-C materials have a thermal deformation temperature above 93 ° C, which can adapt to high temperature environments and maintain normal operation without deformation.
5. Excellent electrical properties: flame retardant, ready to extinguish, volume resistivity ≥ 1.0x1011Q.m, good insulation, safe to use.
6. Corrosion resistance, wear resistance, aging resistance, cracking resistance, long service life, up to 50 years or more.
7. Compared with cement pipes, asbestos pipes, and fiberglass, it is environmentally friendly and energy-saving.
8. Superior performance and price: PVC-C pipes are slightly lower than similar cement pipes, 20% lower than similar steel pipes, and the comprehensive cost can be reduced by 15%.application rangeIt is widely used in urban power grid construction and renovation; urban municipal renovation projects; civil aviation airport engineering construction; engineering park and community engineering construction; traffic, road and bridge engineering construction urban street lamp cable laying, and plays a guiding and protective role.product performance

NO	1	2	3	4	5	6	7	8	9	10
project	density(kg/m3)	Friction, factor	volume resistivity Ω·cm	Vicat softening temperatureºC	drop impact	flat test	Ring stiffness (kn/m2)	Vertical retraction rate(%)	Do not break	Self-extinguishing
Technical indicators	1450	≤0.33	≥1x10 13	| type≥88,	10/10 Do not break	No rupture	≥8	≤5	Self-extinguishing te≤30s	>30kv

FAQ1,What's your minimum order quantity?
Our minimum order quantity is usually 1 CTN.
2,How long is the delivery cycle?
The delivery time is approximately 15 - 20 days. (If the quantity is less than 10 cartons, it will take about 3 - 5 days.)
3,Where is the port of shipment?
We ship the goods via Tianjin Port.
4,What are your payment terms?
We accept 30% telegraphic transfer as advance payment, 70% payment during the shipment period or 100% letter of credit.
5,How can I contact you?
You can contact us through the trade manager or click on "Contact Supplier" at the bottom to send us an email.
6,Where is your company located?
Our company is located in Cangzhou, Hebei Province, China. You are very welcome to visit us if you'd like.
7,How about the samples?
We can send samples to you. Most samples can be sent to most parts of China for free. If they are sent to other countries, the transportation cost should be borne by your side.
8,Why choose us?
Our products are genuine, of high quality and with competitive prices.
We have cooperated with customers all over the world and have a good understanding of the market.
You will be very satisfied with our after-sales service.
Any questions and feedback will be replied to within a very short time.
