Horizontal Metal Lathe Machine Economic CNC Lathe with CE for Metal Machining Clk6150p Clk6156

Product Description

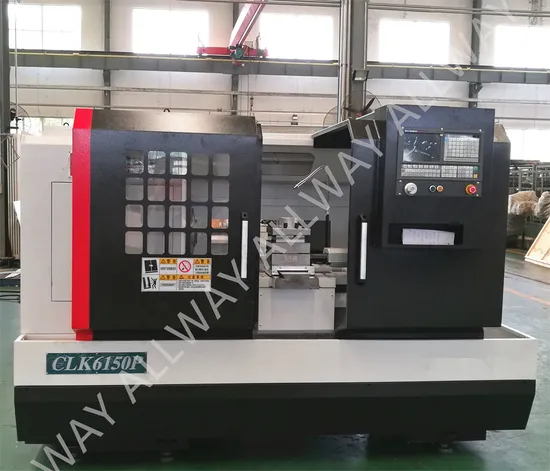

Horizontal Metal Lathe Machine Economic CNC Lathe with CE for Metal Machining CLK6150P CLK6156
Advantage : 1. High performance and cost ratio; Large number export;
2. Width of guideway span 420mm;
3. Spindle adopt gear speed change mechanism,Manual 3-shifts,H:450-1600 M:130-470 L:40-150;
4.Can option power live tool for milling.
1. Introduction and use
This machine is a half closed loop CNC lathe machine, with a centralized automatic lubrication device, 4-station or 6-station electric tool post, once programming input can automatically realize the mechanical parts of the cylindrical, inner hole, thread, complex surface machining.The machine using CNC control system, control 2 axis movement at the same time, there is movement, linear and circular interpolation, thread cutting, all kinds of cutting cycle, coordinate system seted, the tool tip R and cutter offset compensation, and so on fully repair and auxiliary functions .Program compiled USES the international ISO standard, can manually entered program use the key on the panel or Input by data communication interface.
2.SPECIFICATION

Items		Unit	CLK6150P(CK6150)		CLK6156(CK6156)
Max.swing over bed		mm	520		570
X-direction guideway span		mm	220
y-direction guideway span		mm	420
Max.swing over cross slide		mm	280		325
Distance between end of chuck to top of tailstock		mm	920/1420
Center height	From lathe bed	mm	255		280
	From ground		1145		1170
Spindle bore		mm	88(manual chuck)
Pull rod Dia.of hollow Hydraulic chuck		mm	75
Spindle nose type			A2-8
Manual chuck		mm	250
Spindle taper			Metric 100,1:20
Spindle speed		r/min	Manual 3-shifts H:450-1600 M:130-470 L:40-150
Tool post number			4/6(optional)
Tool size		mm	25×25(4-position) 25×32(6-position)		32×32
X:lead screw SPEC.		mm	25*4
Z:lead screw SPEC.		mm	40*8
x/z rapid		m/min	6/10
X-direction travel		mm	310
Z-direction travel		mm	785/1285
Min setting unit		mm	0.001
Tailstock type			manual
Tailstock sleeve diameter		mm	75
Tailstock sleeve taper			MT 5
Tailstock sleeve travel		mm	150
Total power		Kw	12.5/16
Main motor power		Kw	7.5
N/W		kg	2200/2410	2350/2560
Overall dimension		mm	2675*1651*1795 3175*1651*1795	2570*1651*1795 3070*1651*1795

3. STANDARD ACCESSORIES:
1) 1000mm Horizontal lathe bed.420mm width of lathe bed. 1000mm,420mm.
2) guide way surface of longitudinal ,cross slide stick PTFE,,;
3) Conversion frequency 3-shift (manual change speed),stepless in during one shift, Max speed 1600r/min, Main general motor:7.5KW
(),,1600r/min,7.5KW;
4) Spindle extra position cyclonic pump forced oil lubrication;.
5) general manual 3-jaw chuck 250mm. φ250
6) 4-position electric tool post. ;
7) Manual tailstock; ;
8) lead screw, guide way Auto intermittent lubrication. ;
9) double sliding door Semi-protection shield. ;
10) stationary type electronic handwheel; ;
11) Work light;;
12) general cooling device..
13) Manual remove chip..
14) GSK980TD CNC system.
4. Optional:
1)FANUC/SIEMENS/MITSUBISHI/GT66T/KND CNC system.
2) Horizontal lathe bed 1500mm
3) General manual 3-jaw chuck 320mm;φ320;
4) Hydraulic pneumatic hollow, solid chuck.,,;
5) 6-position electric tool post.;
6) carriage with 'T' slot.
7) manual follow rest ,steady rest, hydraulic auto follow rest.,,
8)Hydraulic, pneumatic tailstock;,;
9) double sliding door full-protection shield.
Contact ALLWAY MACHINERY , get more professional information!
