Gas Cylinder Charging 100 Psi-10000 Psi High Pressure Piston Nitrogen Oxygen Air Driven Compressor Gas Booster Pump Double Acting

Product Description

Product Description
Product Parameters

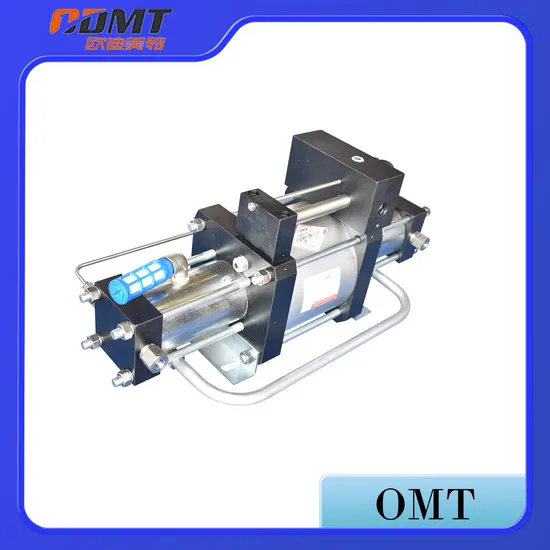

OMT-Series
This series of pump has double stage. It can amplify extremely low pressure into very high pressure. The drive gas pressure≤8bar. The rage of inlet gas pressure is 0.5-10bar. The maximum pressure can be up to 80Mpa. The pump is made of aluminum alloy and stainless steel.
The diameter of its drive piston is 160mm. Both pump heads can cool the exhaust gas.

Type	Pressure ratio	Min. Gas Inlet Pressure PA(bar)	Max. Gas Inlet Pressure PA(bar)	Max. Allowed Outlet Pressure PB(bar)	Outlet Pressure Calculate Formula PB	Gas Inlet	Gas Outlet	Max. Flow Ln/min @PL=6bar
OMT25	25:1	0.1 bar	10 bar	200bar	25PL+3.5PA	ZG1/4	ZG1/4	136@PA=8
OMT40	40:1	0.1bar	10bar	320bar	40PL+6PA	ZG1/4	ZG1/4	124@PA=8
OMT10/60	10:1/60:1	0.1bar	10bar	480bar	60PL+6PA	ZG1/4	ZG1/4	84@PA=8
OMT25/60	25:1/60:1	0.1bar	25bar	480bar	60PL+2.5PA	ZG1/4	ZG1/4	80@PA=15
OMT100	100:1	0.1bar	10bar	800bar	100PL+10PA	ZG1/4	ZG1/4	63@PA=8

PL=drive pressure PA=input gas pressure PB=output gas pressure
Key features include:
Compressed Air driven - no electricity required (connect to normal air compressor) In order to extend the lifetime of the pump, the driving air pressure should not be higher than 8 bar No airline lubricator required Hydrocarbon free - separation between air and gas sections Pressures to 80Mpa (11,600 psi) Wide range of models with different ratios Built-in-cooling on most models Easy to install, operate and maintain Best price / performance ratio No heat, flame or spark risk and explosion proof Automatic pressure holding, whatever the cause of the pressure drop, the Suncenter pump will automatically start, keep the loop pressure constant Applicable gas: Argon/Helium/Hydrogen/Oxygen/NO2/CH4/LNG/LPG/CNG/FM200 etc. OMT series gas booster pumps(Double acting ): DGD series pumps are double acting, with single air driven heads type. OMT pumps are available with high quality seals, which provide significantly better service life Double pump heads with exhaust cooling devices. All components in contact with the gas are made of stainless steel. Pipes mounting way are available as customized. Application
Pressure test with gas Gas transfer and filling (Argon/Helium/Hydrogen/Oxygen/Nitrogen/CO2/NO2/CH4/LNG/LPG/CNG/FM200 etc.) Charging of gas cylinder and accumulator with nitrogen Supply for isolating gas systems Gas assisted injection molding Transfer of oxygen cylinders Charging of breathing air bottles Leak test Hydrostatic Testing for valves, tanks, pressure vessels, pressure switches, hoses, pipes and tubing, pressure gauges, cylinders, transducers, well casings, BOPs, gas bottles and air craft components Safety valve adjusting Packaging & Shipping

Company Profile
Exhibition d Customer Visit
Certifications

FAQ
Q1. Where is your factory located ? How can I visit there?
Our factory is located in Jinan city, Shang dong Province, China. We can go to Jinan airport and wait for your arrival.
Q2 : Do you have stock for all items? A:In general, we have some stock, while if you need a bulk order, we still need time to produce it. Of course, we will inform all details you before your payment.
Q3. How long can be finished the goods ? A : Sample order : within one week ; Large order : 15-25 days ; According to your purchase quantity.
Q4. At which port do you usually ship the good? We usually ship goods via Qingdao port of China.
Q5 : What is payment terms ? A: Sample order : 100% full payment before start to production; Large order : 30% deposit first, 70% pay after see the BL copy ;
Q6: Can give free sample ? A : Free : if small spare parts and the cost not too much is ok ; Not Free : the cost expensive and all the machine can not be free ;
