Burglar Alarm Motion Detectors LC-100-Pi Infrared Motion Detectors

Product Description

Burglar Alarm Motion Detectors LC-100-PI Infrared Motion Detectors
Specification:

Detection Method	Quad (Four element) PIR
Power Input	8.2 to 16Vdc
Current Draw	Active: 10mA (±5%) Standby: 8mA (±5%)
Temp Compensation	Yes
Alarm Period	2 sec (±0.5sec)
Alarm Outputs	LC-100-PI - Form A - NC LC-120-PI - Form C - NC & NO 28Vdc 0.1 A with 10 Ohm series protection resistors
Tamper Switch	N.C 28Vdc 0.1 A with 10 Ohm series protection resistors open when cover is removed
Warm up Period	60sec (± 5sec)
LED Indicator	LED is ON during ALARM
RF Immunity	10 V/m plus 80% AM from 80 MHz to 1GHz
Static Immunity	8kV contact, 15kV air
Transient Immunity	2.4kV @ 1.2joules
Operation Temp	-10ºC ~ +50 ºC (14 ºF~122 ºF)

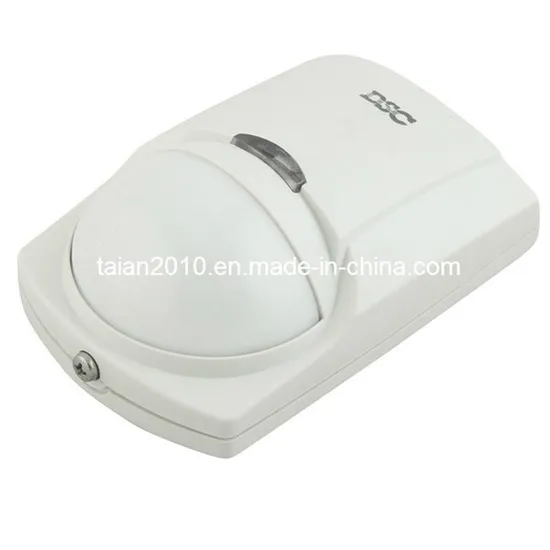

Picture:
Service:

OEM/ODM Service	YES
Warranty	12 months
Payment	T/T, Western Union, Paypal...

About us:
SHENZHEN TAIAN ELECTRONICS Co., Ltd., is an Exporter and Wholesaler for Security Products in China. Our company specializes in PIR sensor, motion ,outdoor sensors ,sirens, alarm panels, GSM series and smokes for home safety and intruder Security alarm systems. Our products are suitable for use in Control center (report to Police), Garden, Bank, and all of the Commercial, Industrial and Civil buildings. For more information, see our products section. Welcome to view our website to know more about us. TAIAN is always looking for friendly cooperation with customers all over the world. We can be your best supplier with wide range of Security Products. Welcome to contact us for OEM & ODM service!
FAQ:
Q: 1. Can I have a sample order?
A: yes, welcome sample order to test and check quality
Q: 2. Which Payment terms are acceptable?
A: We accept T/T, Western Union, PayPal
Q: 3. Which Shipping methods are available?
A: The DHL, UPS, FedEx, EMS, By Air, By Sea are available.
Q: 4. How about the lead time and delivery time of my order?
A: In general, the lead time is 3-10 working day according the details quantity. Delivery time is 4-8 working day.
Q: 5. How long guarantee of our products?
A: our products have warranty with one year.
