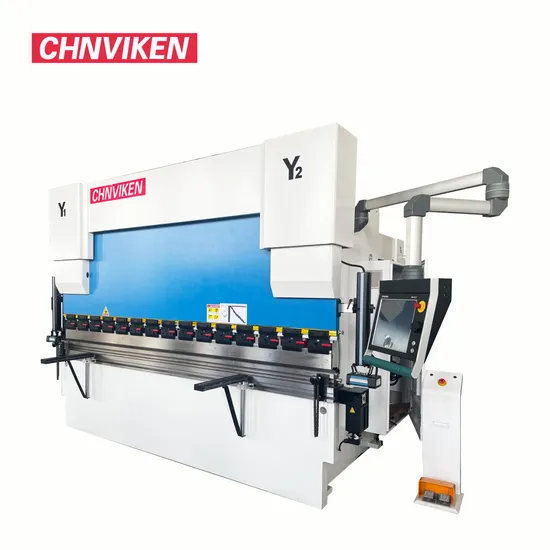

Hydraulic Bending Machine with Full CNC System, Da-66t Automatic Sheet Metal Press Brake Machine

Hydraulic Bending Machine with Full CNC System, Da-66t Automatic Sheet Metal Press Brake Machine

US$15,000.00 1 Set (MOQ)

Basic Info.

Warranty
5-year
Condition
New
Certification
RoHS, ISO 9001:2000, ISO 9001:2008, CE
Automation
Automatic
Suitable for
Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
Type
Press Brake
Bending Force
63t 100t 160t 200t 300t 400t 600t
Machine Type
Synchronized
Length of Working Table (mm)
2500 3200 4000 6000
Automatic Level
Fully Automatic
Controller System
Da66t
Daylight
320 360 440 530
Throat Depth
250 320 400
Main Motor Power
7.5kw 11kw 15kw
Transport Package
Plywood Box
Specification
25 CBM
Trademark
CHIVIKEN
Origin
Anhui, China
HS Code
8462299000
Production Capacity
1000 Sets/Year

Packaging & Delivery

Package Size
380.00cm * 150.00cm * 260.00cm
Package Gross Weight
6800.000kg

Product Description

technical specification
Delem DA66T CNC Control system:
The new generation DA-Touch controls offers an even higher grade of efficiency in programming, operation and control of today's press brakes. Ease of use combined with state-of-the-art technology go hand in hand, improving productivity.
The touch screengives access to the proven Delem user-interface and enables direct navigation between programming and production. Functions are directly located where you need them, offering optimised ergonomics throughout the application.
The DA-66T offers 2D programming that includes automatic bend sequence calculation and collision detection. Full 3D machine set-up with multiple tool stations giving true feedback on the product feasibility and handling.
Highly effective control algorithms optimise the machine cycle and minimise set-up time. This makes using press brakes easier, more efficient and more versatile then ever.DA-66T features
> 3D visualisation in simulation and production
> 17″ high resolution colour TFT
> Full Windows application suite
> Delem Modusys compatibility (module scalability and adaptivity
> USB, peripheral interfacing
> User specific application support within the controllers multitasking environment
> Sensor bending & correction interface.
Bending Capability80/3200100/3200125/4000160/3200200/4000300/4000400/6000
Nominal Force(KN)800100012501600200030004000
Worktable Length(mm)3200320040003200400040006000
Column Distance(mm)2565261034502610314031404740
Throat Depth(mm)250320320320320400400
Ram Stroke(mm)120120120180250250300
Main Motor Power(KW)5.57.57.511151530
No.Component NameDetails
1 ControllerDA-66T
2Main MotorSiemens Main Motor
3Hydraulic systemRexRoth, Germany
4Oil pumpSunny, America
5Electrical componentsSchneider, France
6Servo motor and driverEstun, China Nanjing
7Ball screw linear guide railHIWIN, China Taiwan
8Hydro-cylinderVIKEN
9BearNSK, China Shanghai
10Punch and Die42CrMo Material
