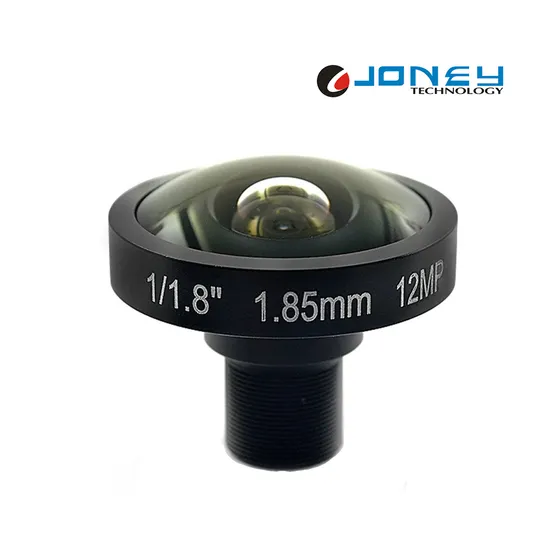

12 Megapixel 4K CCTV Fisheye Lens M12 Mount 1/1.8 " Inch Sensor 180 /185 /190 Degree Horizontal Angle Security Camera Lens OEM ODM Supplier Factory
Basic Info.
Model NO.
JY-M12-1.85FY-12MP-1/1.8
Focus Type
Telephoto Lens
Maximum Aperture
F2.0
Image Stabilization Function
With Image Stabilization
Filter Size
1.85mm
Drive Motor
Without Drive Motor
Positioning
1/1.8 Inch
Resolution
12 Megapixel
Focal Length
1.85mm
Aperture
F2.0
Image Circle
5.6mm
M.O.D
0.15m
Lens Dimension
Dia. 34mmx29.3mm
Bfl
6.25mm
Mbf
5.43mm
IR Correction
Yes
Iris
Fixed
Focus
Fixed
Zoom
Fixed
Operating Temperature
-20-+60 Cesar Degrees
Transport Package
100PCS/Carton
Trademark
OEM
Origin
China
HS Code
9002119090
Production Capacity
100000PCS/Day
Product Description
CCTV 12 megapixel 4K Fisheye lens M12 mount 1/1.8 " inch sensor 180 /185 /190 horizontal angle| Model | JY-M12-1.85FY-12MP-1/1.8 | |||||||||||||||||
| Resolution | 12 Megapixel | |||||||||||||||||
| Image Circle | Φ5.6mm | |||||||||||||||||
| Focal length | 1.85mm | |||||||||||||||||
| Aperture | F2.0 | |||||||||||||||||
| Mount | M12 | |||||||||||||||||
D×H×V(°) | " ° | 1/1.7 | 1/2 | 1/2.5 | ||||||||||||||
| D | 185 | 185 | 185 | |||||||||||||||
| H | 185 | 185 | 185 | |||||||||||||||
| V | 185 | 154.9 | 126.4 | |||||||||||||||
| Optical Distortion | #VALUE! | |||||||||||||||||
| M.O.D. | 0.15m | |||||||||||||||||
| Dimension | Φ34×29.3mm | |||||||||||||||||
| Flange BFL | / | |||||||||||||||||
| Weight | 30.4g | |||||||||||||||||
| BFL | 6.25mm | |||||||||||||||||
| MBF | 5.43mm | |||||||||||||||||
| IR Correction | Yes | |||||||||||||||||
Operation | Iris | Fixed | ||||||||||||||||
| Focus | / | |||||||||||||||||
| Zoom | / | |||||||||||||||||
| Operating temperature | -20ºC~+60ºC | |||||||||||||||||
