Easy Operating Laser Welding Cleaning Cutting 3 in 1 Machine 1000W 2000W 3000W Fiber Laser Welding Machine for Metal

Product Description

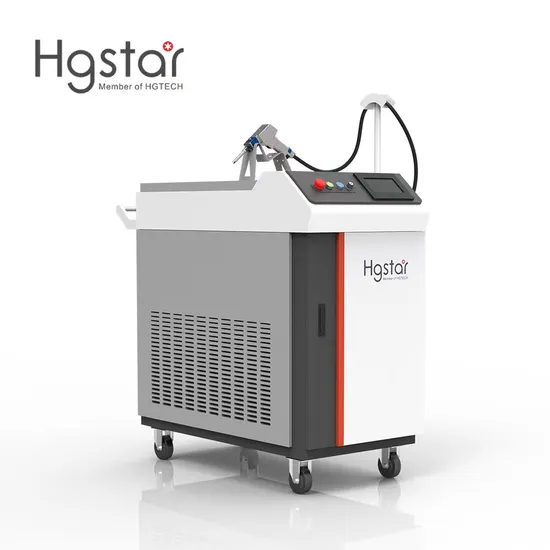

HW SERIES Hand-held Laser Welding Machines Product Description
The HW series (HW-2000W/1500W/1000W) is a handheld welding machine developed by Huagong Xingdong in accordance with international export standards. The HW series (HW-2000W/1500W/1000W) optical fiber continuous laser handheld welding machine consists of an integrated cabinet, a handheld welding head and control system, an optical fiber device, a cooling water circulating system, a wire feeder system and a shielding gas system.
This series of products can effectively solve the problems of slow speed and large deformation of traditional argon arc welding, and are widely used in metal advertisement welding, stainless steel engineering welding, sheet metal cabinet welding and large sheet metal structure welding.

MODEL	SMART HW1500	SMART HW2000	SMART HW3000
Power	1500W	2000W	3000W
Laser type	Fiber
Wavelength	1080nm
Frequency	20-5000Hz
Output focal length	120mm
Power consumption	7Kw	8Kw	10Kw
Electricity demand	220V 1PH		380V 3PH

Product Advantages
The welding speed is fast, and the laser welding efficiency can be several times higher than the traditional arc.
The weld is smooth and beautiful, reducing the subsequent grinding process, and saving time and cost.
There is no deformation and weld scar during welding, which can achieve deeper penetration and stronger welding strength.
Laser welding is simple in operation, low in consumption and long in service life.
Safer and more environmentally friendly.
HW series (HW-2000W/1500W/1000W) laser welding can realize the welding of carbon steel, stainless steel, aluminum and other different materials, as well as butt welding, lap welding, corner welding, flanging and other different forms of welding.
Application
Applicable Materials
HW series (HW-2000W/1500W/1000W) laser welding can realize the welding of carbon steel, stainless steel, aluminum and other different materials, as well as butt welding, lap welding, corner welding, flanging and other different forms of welding.
Applicable Industries
Product Parameters
Details Technical Specification

Machine Model	HW-3000/2000/1500
The laser wavelength	1080nm
Laser power	3000W/2000W/1500W
Weldable material	Carbon steel stainless steel aluminum
Optical fiber	50um,10m(15m/20m optional )
Modulation frequency	20KHz
Energy stability	<3%
Cooling medium	Distilled water/pure water
The whole machine net weight	> 210KG
Spot diameter (swing optional)	0-5mm
Machine size (mm)	Length: 1110 width: 595 height: 1030 (HW-3000:Length: 1270 width: 595 height: 1140)
The engine power	10KW / 8KW / 7KW
Recommended Environment	Clean and dust-free, no source, 10ºC-40ºC, humidity < 70%
Operating mode	LCD touch screen
The power supply	380 v / 3PH or 220 v / 1PH 50HZ or 60HZ optional based on country and region

Detailed Photos
Details Appearance size drawing
Details Machine configuration
Sample
Applicable to welding carbon steel, stainless steel, aluminum, brass , alloy metals, etc.
After-sale Service
1. Warranty period: From the acceptance qualified date, the warranty period will be 1 (one) year, but in any case, not more than 13 months after B/L date. Seller is responsible to offer free fittings in these years (except consumable part.) Buyer has to send the damaged fitting to sellers. After the warranty, we will also provide favorable service of long term technical supports and spares supply to ensure machine's stable and continuous running.
2. The artificial damage in the warranty period and damage after warranty period, Seller offers paid service.
3. The Seller will give 24 hours service support during warranty time, and giving technical guide by email, telephone, Fax for daily maintenance, if need local support, Buyer has to pay for the travel and
accommodation & meal cost for the people from seller's side, no labor charge require. If products are out of warranty and require on site service, Buyer have to pay for the travel and accommodation & meal cost for the people from seller's side, labor charge is require, USD200/day per people.
4. About the transportation expanses of spare parts will be supported by both parties in the warranty period, like Buyer support the cost of transportation for damage spare part back to supplier; Seller support the new spare part deliver to Buyer.
Packaging and shipping
Company Profile
Company certification
Our Vision:
Participate in building a fully connected,
fully perceptual, and intelligent world,
and become a global influential tech-
nology company
Business Partners:
Exihibition
FAQ:
Q: What's the package?
A: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe transportation. We have exported to 180 countries worldwide. So please don't worry, you will receive the parcel in good condition.
Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user's manual along with the machine. 95% customers can learn by themselves.
Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
Please advise us the following information, then we can recommend you the most suitable model, right now, don't hesitate to contact -China HG STAR!
