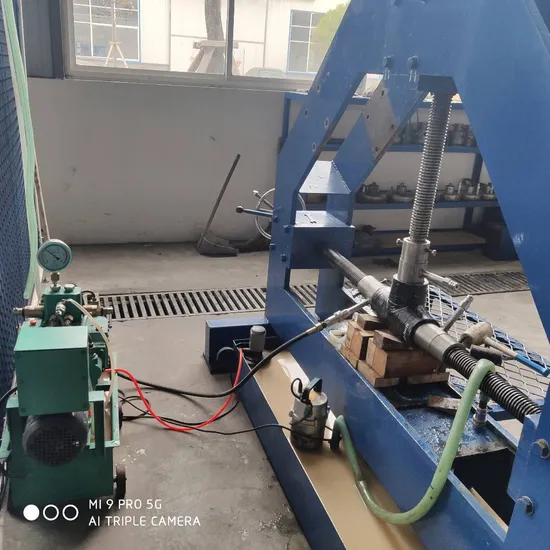

Gfrp Pipe Fittings, Elbow, Tee, Reducer Winding Machine, Hydro Pressure Machine for Diameter DN100, 150, 200, 250, 300, 350, 400, 450, 500, 550, 600mm
| US$40,000.00-60,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
Customized
Automatic
Automatic
Certification
CE, ISO
Controlled by
PLC
Transport Package
Seaworthy
Specification
Customized
Trademark
Fangchen
Origin
China
HS Code
8477800000
Production Capacity
100000tons/Year
Product Description
(1) Technical parameters| S/N | Main components | Technical parameter | Remarks |
| 1 | Diameter range of fabricated products | DN300-DN600 | |
| 2 | Center height of winding machine | 1500MM | |
| 3 | Spindle power | 4KW | |
| 4 | Speed of spindle | 30rpm | |
| 5 | Swing arm frequency | MAX19rpm | |
| 6 | Swing arm control mode | hydraulic pressure | |
| 7 | Servo motor power | without | |
| 8 | Transverse stroke of swing arm | 600mm | |
| 9 | Longitudinal stroke of swing arm | without | |
| 10 | Swing arm movement control mode | hydraulic pressure | |
| 11 | Moving stroke of driven bearing seat | without | |
| 12 | Telescopic stroke of driven shaft | 600mm | |
| 13 | Swing arm moving motor power | without | |
| 14 | Swing arm control mode | hydraulic pressure | |
| 15 | Rated working pressure of hydraulic system | 14Mpa | |
| 16 | Equipment power | 7KW |
Application and characteristics Application: It is applied to the manufacture of fittings such as tees and elbows for FRP pipes.
Features: simple mechanical structure, convenient maintenance, swing arm controlled by hydraulic system, large working torque and adjustable speed, easy for operators to use.
Main structure principleThe machine head is driven by the motor reducer, the three-jaw chuck plates clamps the fitting mold, the tailstock passively supports the mold, and the product is produced through the swing of the swing arm.
Main functionsManufacture of fittings such as tee and elbow used for FRP pipes.
Equipment configuration list
| S/N | Description | Main parts | Technical parameter | Brand |
| 1 | Control system | Frequency changer/inverter | 4KW | Powtran |
| Electric box | 600X800X300 | Fangchen | ||
| Contactor | CJ20 | CHINT | ||
| 2 | Transmission system | Reducer machine | XLD5-43-4KW | Xieshun |
| Ordinary motor | Y132M-4-B5-4KW | Mengniu | ||
| Chain wheel | N/A | |||
| 3 | Hydraulic pressure system | Hydraulic pump station | Volume 200L | Fangchen |
| Hydraulic oil pump | CB-Fa10C-FL | Changsheng | ||
| Hydraulic reversing valve | 4WE6E50/W220-50Z4 | Beiye wantong | ||
| 4 | Guide rails (bearings, etc.) | Bearing | 60220 | HRB |
| Linear guide | SBR35 | Shangyin | ||
| 5 | Machine Frame | Base | 12# channel steel | Fangchen |
| Baseboard | 4X | Fangchen | ||
| Principal axis | 45# | Fangchen | ||
| Flange plate | Q235 | Fangchen | ||
| Resin tank | stainless steel | Fangchen | ||
| Resin tank frame | stainless steel | Fangchen | ||
| Roving rack | 40X40 square tube | Fangchen | ||
| Left and right brackets | 300X200 square tube | Fangchen | ||
| 6 | Protective cover | Piano-shaped shield | Customized | Dongfang |
