IP 4K 35X Optical Zoom HD Video Conference Ndi PTZ Camera USB SDI HDMI

Product Description

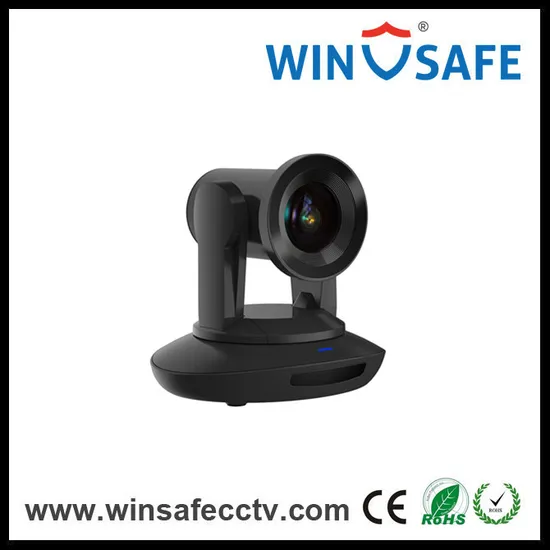

IP 4K 35X Optical Zoom HD Video NDI PTZ Camera
WINSAFE UHV-500H(NDI) is a professional grade 4K Ultra HD video camera, with NDI, 3G-SDI, HDMI and USB3.0 output interface, it has 35x optical zoom. NDI enables live streaming simpler, easier and affordable. No mess, an Ethernet cable enables video, audio, control, tally, and power. UHV-500H(NDI) is a top-rated option used in professional live streaming solution, working with TriCaster, Wirecast, Vmix, OBS, Xplit etc, applied for Corporate, Class Room, Studio, and Professional AV environments.
Feature
1)Adopting the advanced ISP, 1/1.7 inch 12MP sensor, to provide 3840x2160p30 Ultra HD and crisp video with full details.
2)Truly 4k lens: 35x optical zoom+2x digital zoom, 60 degree field of view.
3)IP Video Streaming, includes both H.264, H.265 video encoding;
4)NDI|HX, 3G-SDI, HDMI, USB output video simultaneously, 4K video over NDI|HX and HDMl.
5)WDR, 3D Noise Reduction feature;
6) Power over Ethernet: one single CAT5/6 to get video, control, tally and power;
7)Live RTMP streaming, streaming to YouTuBe Live and Facebook Live directly.
8)Special Focusing Algorithm: fast and precise focusing performance when zooming or moving,
9)Smooth PTZ mechanical design, accurate pan tilt motor control;
10)Optional enclosure color: silver, grey, black, white.
11)Support multiple browsers to view video such as IE, Chrome, Firefox, Safari in both Mac and Windows system.
12) Supplied with functional IR remote controller, can set IP address via OSD menu;

Model No.	UHV-500-H(NDI)
Camera
Sensor	1/1.7" 12MegapixelCMOS Sensor
Video System	HDMI	NDI	3G-SDI	USB
	3840x2160p30/25 1920x10800p60/59.94/50/30/29.97/25/24 1920x1080i60/59.94/50 1280x720p60/59.94/50/30/29.97/25	Main Steam: 3840x2160p30 1920x1080p30 Sub Steam: 1280x720@30 1024x576@30 640x360@30	1920x1080p60/59.94/50/30/29.94/25/24 1920x1080i60/59.94/50 1280x720p60/59.94/50/29.97/30/25	USB 3.0: 1920x1080p60/50/30/25 1280x720p60/50/30/25 1024x576p30 USB 2.0: 1024x576p30,960x540p30 640x360p30,352x288p30
Zoom	35x optical zoom + 2x digital zoom
View Angle	2.02° (wide) - 60° (tele)
Focal Length	f=5.8(Near) - 203mm(Far)
SNR	Above 50dB
Minimum Lux	0.01Lux
Focus	Auto/Manual
Min.Focus Distance	Wide: 0.3m Tele:1.5m
Iris	Auto/Manual
Iris No.	Wide: 1.5 Tele: 4.8
White Balance	Auto/Manual/Auto Tracking/OnePush/Indoor/Outdoor
Electric Shutter	Auto/Manual
Backlight Compensation	Atuo/Manual
Noise Reduction	2D & 3D
D/N Mode	Supported
Gamma	Supported
Mirror Image	Supported
Image Flip	Supported
PanTilt Flip	Supported
Anti Flicker	50Hz/60Hz/OFF
Video Freeze	Supported
Mechanical
Preset	10 via remote controller; 128 via serial port; preset precision:0.1°
Pan Rotation Angle	- 170° - +170°
Tilt Roation Angle	- 30° - + 90°
Pan Rotation Speed	0° - 120° /s
Tilt Rotation Speed	0° - 80° /s
Control Port	NDI|HX RS232 / RS485 /USB3.0
Video Port	NDI|HX/3G-SDI/HDMI/USB3.0
Power	DC12V,2A
POE	Supported
Dimension	220mm x 173mm x 190mm
Net Weight	1.25KGS(2.8LBS)
Encoding
Video Encoding	H.264/H.265
Bit Rate Control	1024Kpbs - 20480Kbps
Video Bit Rate	1024Kbps - 20480Kbps
Frames	50HZ: 1fps - 50fps; 60HZ: 1fps - 60fps (3840 x 2160 max.30fps)
IP Protocol	TCP/IP, HTTP,RTSP, RTMP, Onvif, DHCP,VISCA over IP(TCP&UDP),HTML5
Network Speed	1000M
Supported Browser	Chrome, Safari, Firefox,IE~~~~

NDI PTZ Camera are more and more popular now which are good used on the live steaming.
