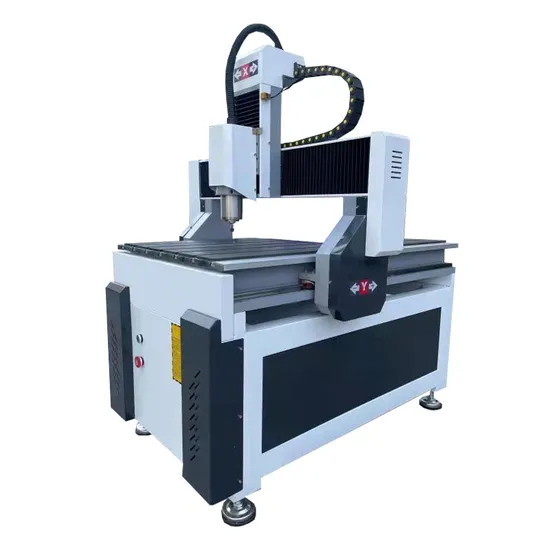

Jinan Hot Sale 6090 Model 3D CNC Router Machine for Advertising Industry

Product Description

Product DescriptionThis is one casting iron bed structure cnc router machine
with 1.5 or 2.2KW water cooling spindle
With stepper motor, can be optional easy servo motor or pure servo motor
with T-slot table, can be optional vacuum table and water tank table , etc
Wth ncstudio control system, or MACH3, DSP control system etc
with tool sensor
exporting plywood pacakge, etc
We will send you 3 collects and 10 pieces cutters
Product Parameters

Model	ZHONGKE-6090 cnc router machine
Effective working area	600*900mm
Max.feeding height of Z axis	200mm
Whole structure	Welded steel tube structure
Table style	Aluminum T-slot table with PVC
Guide rail	Hiwin sqaure linear guide rail
Driving method	Double nut TBI Ball screw for X,Y axis
Spindle	1.5 KW or 2.2 water cooling spindle
Invert	Fuling invert
Collect size	ER16
Spindle speed	0-24000rpm
Motors and drivers	86BYG-450B stepper motors and MA860H Leadshine drivers
Dust proof	Dust proof for X,Y,Z axis
Control system	Ncstudio control system
Working Accuracy	<0.03/300mm
Working speed	<7000mm/min
Traveling speed	0-7000mm/min
Instruction format	G code *.u00 *.mmg *.plt
Working voltage	AC220V, Single Phase, 50-60Hz
Standard Software	Artcam 2010
Compatible software	Type3/Castmate/Coreldraw/AutoCAD or other CAM/CAD software
Environment temperature	0-45ºC
Environment humidity	30%-75% No coagulate water
Too sensor	Yes
Others	English manual,Tool box,Tool sensor,etc.
Optional parts	1,Rotary axis for engraving round wood:price depends on its diameter 2,2.2kw water cooling spindle 3,Water tank for cutting soft metal 4,Mach3 USB control system

Feature1. Adopts welded steel tube mechanical structure and imported linear orbit.big loading capacity, gantry moving, good moving stability, high precision and long lifetime.
2. Optional DSP or NC control system ,easy to operate,it is able to continue engraving when the electricity and with the function of forecasting process time.
3. Adopts high frequency spindle ,ensure to well engrave and cut ,long lifetime.
4. Be compatible with several CAD/CAM designing software, Type3,ARTCAM .JD, Master CAM,UG,Castmate ,etc
5. The 6090 cnc router can be equipped with water cycle working table ,ensure to process many materials.
6. Adopts stepper motor and driver, high speed ,good moving and low noise(servo motor and driver is also available)
7. Optional rotation axis,expand the processing materials and improve the added value of products.
Main ConfigurationAuto oil lubricating system water tank table Control cabient withh drivers, inverter
water cooling spindle 1.5 or 2.3KW Casting iron bed structure for machine Tool sensor
Richauto A11 dsp control system withh mainbaord Tool box , inside wit water pumps, clamps, etc
Packaging & Shipping1. Outside package: Standard marine export plywood case.
2. Inner package: Stretchy film and plastic film for humidity.
We could package according to your requests.
Can shipped by LCL or FCL
1. Shipped in 3-15 working days after payment.
2. We always transport the machine by sea, but it's a mini cnc router, the weight and volume is small, if you want receive the goods more quickly, we can transport the goods by air.
FAQ1. 24/7 service is available to each customer. And if any technical questions or problems,our engineers will help you and give you solutions on the phone or by face-to-face communication online.
2. Professional staff for installation and training if needed.
3. Spare parts are supplying on time or doing some inventory if promising certain sales volume.
4. Faster delivery, we will support our sole agent to do the stock if good sales, then more convenient and helpful.
Company ProfileJinan Zhongke CNC Equipment Co., Ltd. is mainly engaged in engraving machines; Woodworking carving machine; Furniture carving machine; Advertising engraving machine; Laser engraving machine; Stone carving machine, glass carving machine, metal carving machine; A production-oriented company that specializes in the research and development, production, and sales of carving and cutting equipment. Our products draw on advanced foreign technologies and rely on years of market accumulation to establish a stable technical service team for computers, CNC machine tools, and industrial automation products. We are a technology service company that integrates the research and development, assembly, production, and sales of CNC machinery, optoelectronic products, and other electromechanical equipment.Sample photos
