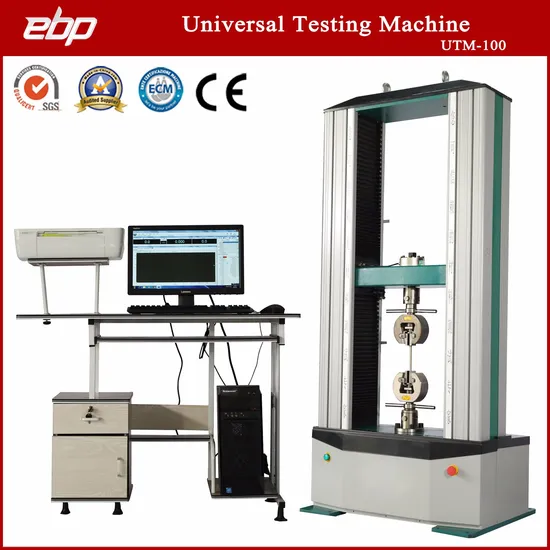

100kn Instron Computer Universal Tensile Testing Machine

Product Description

Product Description 100KN Instron Computer Universal Tensile Testing Machine
1. Application
This testing machines is equipped with computer, printer, and general test software, to give an accurate determination of metal the material tensile strength, yield strength, the provisions of non-proportional extension strength, elongation, elastic modulus mechanical properties. Test results can print (force - displacement, force - deformation, stress - displacement, stress - deformation, force - time distortion - time) six kinds of curves and related test data, with the software self-test function that can self-diagnose problems. It is ideal testing equipment for the industrial and mining enterprises, scientific research units, universities, engineering quality supervision station. They are perfect testing instrument project quality testing section, universities and colleges, research institution and industrial and mining.
2. Test capability of machine and relevant Standard:
ASTM E8 - 16 Standard Test Methods for Tension Testing of Metallic Materials
ISO 6892-1 Materials --tensile testing
ASTM A370-05 Standard Test Methods and Definitions for Mechanical Testing of steel products
Product Parameters
3. Main Technical Parameters:

Model	UTM-100
Max. load force	100KN
Crosshead Travel	1000mm
Effective tensile space	750mm
Effective Test width	500mm
Crossbeam travel speed	0.001-500mm/min

Testing Specification	UTM-100
Max.load	100KN
Load accuracy	Class 1 (class 0.5 optional)
Load range	1%-100%FS (0.4%-100%FS optional)
Load resolution	1/300000
Deformation Measurement Range	0.2%~100%FS
Deformation accuracy	≤±1% (≤±0.5% optional)
Deformation resolution	1/500000
Load control speed	0.01~50 kN/s
Deformation control speed	0.002~0.5mm/s

Control Specification	UTM-100
Stress rate	0.005%~5%FS/s
Stress rate accuracy range	When rate < 0.05% FS/s, the precision± 2% When rate ≥ 0.005%FS/s, the precision ±0.5%
Deformation rate	0.005%~5%FS/s
Deformation rate accuracy range	When rate < 0.05% FS/s, the precision± 1% When rate ≥ 0.005%FS/s, the precision ±0.5%
Displacement control accuracy	±0.5%
Constant load, deformation and displacement control	0.5%~100%FS
Constant load, deformation and displacement control accuracy	Preset value≥10%FN, within the ±0.1% of preset value; Preset value<10%FN, within the ±1% of preset value

Clamping Specifications	UTM-100
Tensile grip	Manual Wedge Fixture
Round specimen clamping range	Φ4-9mm,9-14, (14-20mm optional)
Flat specimen clamping range	0-7mm, 7-14, (14-20mm optional)
Compression Plate	Φ100x100 mm
Bending fixture	3 point bending fixture (optional)
Electronic Extensometer for metal material	YUU10/50 (optional)
Large deformation extensometer for rubber	DBX-800 (optional)

4. Main Unit Feature:
4.1 Rigid floor-standing frame loading structure with upper space for tensile and lower one for compression and bending test
4.2 Precise ball screws withstand the whole loading with long-life use and compact layout.
4.3 Speed control system is set under the table and comprises the synchronous toothed belt and pulley for high-efficient transmission, which are featured with low noise and maintenance free.
4.4 Fixed crossbeam as upper ones, and sits above the frame and with middle crossbeam as loading beam with smooth travel when testing . The high-accuracy sensor is installed below the crossbeam.
4.5 Load automatic withstanding,, stress, strain control, cycle control and self programming.
4.6 High precision load sensor for guarantee accurate and stable measure
4.7 Wide crossbeam travel speed from 0.05 ~ 500mm / min
4.8 Overload protection: as test force exceeds 2%-5% of the maximum test force of each file, overload protection, it will stop.
5. Components Supply list

Item	Main body	Material
1	Upper beam	1set
2	Cross beam	1 set
3	High precision screw ball	2 sets
5	Servo motor	Taiwan TECO Brand (Japan Panasonic Brand optional)
6	Load sensor	China Brand (America Transcell Brand optional)
7	Reducers	Taiwan Brand
8	Synchronous belt	China Brand 1PC
9	Computer	Lenovo, 1PC with LCD screen and all new
10	Printer	HPA4 color ink-jet printer, 1PC
Item	Clamping		QTY
1	Manual Wedge Tensile fixture (hydraulic automatic clamping fixtures optional)		1 set
2	Round Jaws Φ4-9mm,9-14, (14-20mm optional) Flat Jaws: 0-7mm, 7-14, (14-20mm optional)		2 sets
3	Compression Plate		1 set
4	3 point bending fixture (optional)		1 set

6. Data Acquisition system
61. The data acquisition system of machine consists of two high precision A/D conversion channel and the maximum resolution should be 1/300000 (minimum)
6.2. USB powered data -logger with USB 2.0 and RS- 232 pc interface, 5-keys joystick, 2MB RAM, Automatic recognition facility, Internal signal generator and 12-bit conversion resolution
7. Software
7.1 Batch and report processing program facility in doc and exl format
7.2 The software is fully compliance with the corresponding international standards like ISO, ASTM and GB standards
