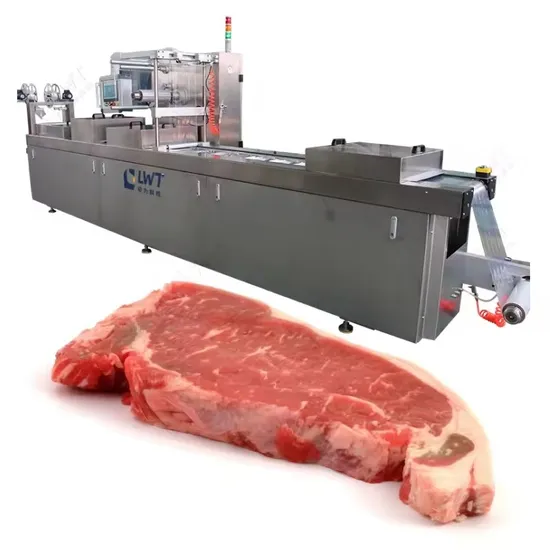

Factory Price Fish Seafood Sausage Cheese Stick Meat Vacuum Thermoforming Packing Machine

Product Description

Product Description
Scope Of Application Leadworld thermoforming vacuum packaging machine suitable for palm date, sausage, meat products, seafood, dairy products ( cheese, etc. ), sauces, pickles whole grains ( such as rice, corn, beans, nuts, etc,) .fruits and vegetables ( such as frozen vegetables. fresh fruit etc,) .daily chemical, hardware components, etc. for vacuum packaging. Custom & Flexible Mold Replacement: One machine for vacuum packaging all specification products only need to change the mold, and we can custom the mold for you. Working Principle: Leadworld automatic thermoforming & vacuum packing machine adopts stretchable and thermoplastic soft film or rigid sheet to form container and vacuuming or MAP sealing and cutting after filling.t does not need to customize the packaging box in advance. and integrates the functions of film stretching., flinch materials, vacuuming and air conditioning, heat sealing, and slitting.t have the characteristics of convenience, low energy consumption short cycle, and high efficiency. and we are provided non-standard customized service. Quality Assurance Adopt world-famous brand accessories, such as Germany Busch vacuum pump, Danfoss inverter, Germany Weidmuler relay, France Schneider air switch, Japanese Panasonic servo motor, Italian Regina chains, Taiwan AirTAC solenoid valve, Siemens PLC, And so on. Product Paramenters

Welcome To Contact Us To Custom Your Thermoforming Vacuum Packaging Machine
Model Parameter	LW-ATVP-S/D320	LW-ATVP-S/D420	LW-ATVP-S/D520
Packing Speed	4-8Cycles/Min
Bottom film Thickness	≤0.8mm
Bottom film Width	322mm	422mm	522mm
Top Film Width	285mm	385mm	485mm
Max.Forming Size	300X400mm	400X400mm	500X400mm
Max.Forming Depth	80mm
Power Supply	AC 380V 50Hz(3Phase)
Air Consumption	500L/Min	550L/Min	650L/Min
Air Supply	≥0.6Mpa
Loading Area Length	≥1.5m
Power	10kw	12kw	15kw
Dimension	4500X1000X1700mm	5200X1100X1760mm	6000X1200X1760mm
Weight	1300kg	1600kg	2200kg

Custom Optional Function According to the user's packaging requirements, it can be equipped with automatic code spaying, code printing, laser code spraying labeling machine, Z model elevator, automatic feeding, and other systems. Company Profile Shanghai Leadworld Machinery Technology Co., Ltd is specialized in researching and manufacturing various whole set of packing production systems, such as Canned food production line, carton packing and palletizer system, automatic filling system, vacuum packing system, different kinds of conveyor system, labeling system and so on, our specialized engineer team will offer whole plant planning.
Leadworld is a industrial and trade integrated enterprise with design, production, customization and installation capabilities, with import and export rights.
We are an outstanding enterprise recognized by China canning association and vice President of canning association.
Our company devote to digesting and absorbing advanced science of processing and automatic equipment.
Welcome to visit us at any time, our equipment is ready to go, waiting at any time. Pre-sales: According to client-specific machinery or automatic product line requirement, supply reasonable machine sketch map, quotation, and similar video for client ref first. During Sales: 1) Depends on the client's need to custom base on the standard machine. 2) Repeat 20 ongoing hours testing equipment
operation stability. 3) Execute GMP certification for the equipment and materials used in the production process requirement and specification strictly. After-Sale: 1. During the epidemic, we support senior engineers to provide one-by-one video guidance; And other times, we will assign professional engineers to customer companies for installation or maintenance services according to customer needs; 2. Supply systematic operation training for client workers. 3. Guarantees all equipment (except human factors) within one year, lifetime maintenance services. 4. After the client use the machine for several years, we can provide a detailed refurbishment program, the original equipment and replacement of hardware and software upgrades, extend machine service life for more than 3-4 years. 5. If quality problems arise, the supplier provides technical support and timely supply wearing parts. FEEDBACKS FAQ Q.Are you a manufacturer or trading company?
A: Yes, We are a manufacturer verified by ****** and we have our own R&D and Production team
Q: What are your company's main products?
A All production Packaging line end of the line and Related Packaging Machinery. If this is not the machine you want, please visit our other machines.
Q.Where are you located? Is it convenient to visit you?
A: Yes, We are located in Shanghai, traffic is very convenient. Welcome to our factory anytime
Q: How can you guarantee the quality?
A: 1. We have completed the working system and procedures and we follow them very strictly.
2. Our different worker is responsible for different working process, their work is confirmed, and will always operate this process, so very experienced.
3. The electrical pneumatic components are from world-famous companies, such as Germany's Sieme ns, Japanese Panasonic, etc.
4. We will do strict test running after the machine is finished.
5. Usually our machines are certified by CE. Also, Leadworld machines can be passed the relevant certification standards of the customer market according to customer needs
Q: Can you design the machine according to our requirements?
A: Yes. We not only can customize the machine according to your technical drawing but also can he new machine according to your requirements.
Q: Can you offer overseas technical support?
A: Yes. We can send the engineer to your company to set the machine and train your worker if needed.
Q: Why do our customers trust and choose us?
A: 1. Leadworld is a factory 2. We have stocks 3. Delivery fast 4. Senior engineer team 5. Competitive price 6. Strict quality control 7. Over 10 years customization experience 8. Provide a test report if you need 9. Excellent after-sales services 10. Advanced machinery and equipment If you have more questions about our product, please send us an inquiry below. Commonly, you will get a reply in 24 hours. Thank you
