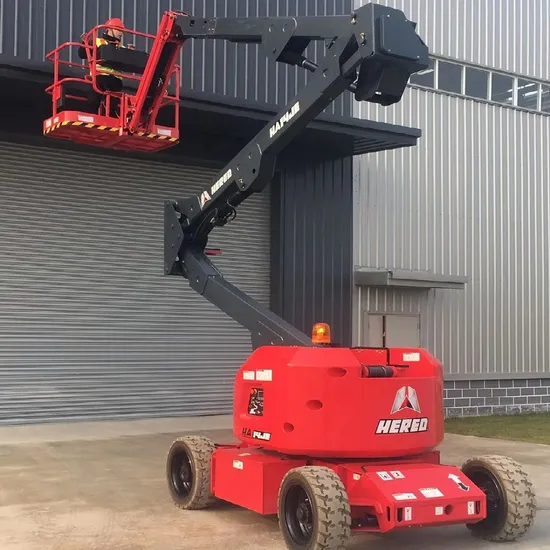

Aerial Construction Work Equipment 300 Kg Self-Propelled Articulated Electric Lift
| US$28,100.00-28,600.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
HA14JE
Carrying Capacity
Weight Level
Moves
Self-propelled
Driven Type
AC
Running Mode
Moving
Feature
Explosion-Proof, Insulating
Certification
GS, CE, RoHS, ISO 9001, ANSI
Driving
Electric
Platform Height
14m
Max.Working Height
16m
Carring Capacity
230kg
Transport Package
High Quality Paper Boxes with Stretch Film
Specification
6.42m x 1.76m x1.93m
Trademark
HERED
Origin
China
HS Code
84289090
Production Capacity
10000 Sets/Year
Packaging & Delivery
Package Size
6.42cm * 1.76cm * 1.93cm
Package Gross Weight
7070.000kg
Product Description
Online consultation to get the lowest price| MODEL | HA14JE |
| Max.Working Height | 16m |
| Max. Platform Height | 14m |
| Max. Horizontal Extension | 7.5m |
| Max.Up and Over Height | 7.54m |
| A- Length (Stowed) | 6.4m |
| B- Width (Stowed) | 1.75m |
| C- Height (Stowed) | 1.93m |
| D- Platform Length | 1.52m |
| E- Platform Width | 0.76m |
| F- Wheelbase | 2.01m |
| G- Ground Clearance | 0.2m |
| PERFORMANCE | |
| Platform Capacity | 230kg |
| Max.Drive Speed (Stowed) | 4.8km/h |
| Gradeability | 30% |
| Turning Radius(In.) | 0.8m |
| Turning Radius(Out.) | 3.8m |
| Turntable Rotation | 355° |
| Platform Rotation | ±90° |
| H- Turntable Tailswing | 0 |
| Tilt Rating | 3° |
| Operating Wind Speed | 12.5m/s |
| POWER | |
| Batteries (V/Ah) | 48V/310Ah |
| Charger | 100-240VAC/13.5A |
| Tires | 705X210X445 |
| WEIGHT | |
| Weight | 7070kg |
| Hydraulic Tank Capacity | 20L |
Hered Intelligent Technology Co., Ltd.
is a modern manufacturing enterprise integrating R&D, manufacturing, sales and service of aerial work platform (AWP) equipment,
HERED is a domestic first-class and internationally renowned AWP manufacturer with new and old driving forces converted. The company's total investment is RMB 395 million, covering an area of 6,7000 square meters, with an annual production capacity of 20,000 sets which can achieve revenue of RMB 1 billion. As the first intelligent equipment manufacturing enterprise for aerial work platform in Liaocheng, Hered has filled the gaps in this field in Liaocheng. The boom and scissor lift produced by the company can replace traditional operation equipment such as scaffolds and hanging baskets. It is safer and more efficient for aerial work, with a wide range of product applications and broad market prospects.
Testing
Model: HA14JE
