Plastic ABS HDPE Sea Kayak Floating Cruising Boat Fishing Boat Big Extrusion Blow Molding Making Machine

Product Description

Product Description

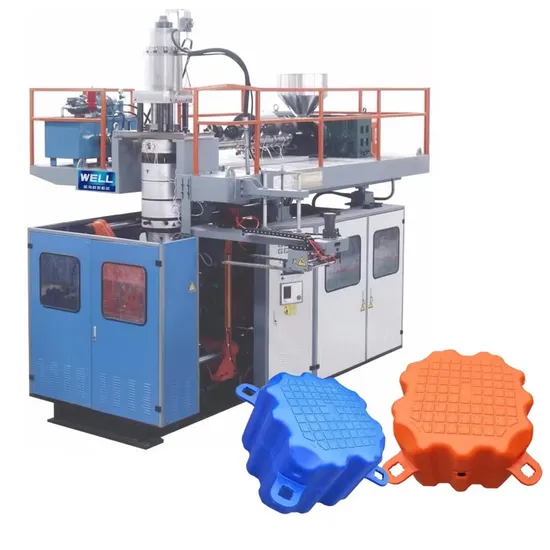

WEZK-1000L water tank Blow Molding Machine
our factory specializes in manufacturing,researching and developing plastic machinery, as a pilot and industrial base of QUST, we fulfilled QUST technology advantages, and continuously develop advanced technology, quality and reliable automatic Blow Molding machine,can produce 1_5000L,1 layer-4 layers, plastic hollow container, which is widely used in tools packaging, auto parts, agricultural machinery, road infrastructure, craft and decorating,entertainment facilities etc; APPLICATION
PRODUCT DETAILS

System	Item	1 layer	2 layer	3 layer	4 layer
Extruder	Screw diameter(mm)	120	100/100	90/100/90	80/90/90/80
	L/D	28/1
	Driving motor power(KW)	90	55/55	45/55/45	30/45/45/30
	Heating power(KW)	40	46	50	50
	Extrusion capacity(Kg/h)	260	320	360	360
Moulds die head	Materials storage volume(Kg)	45
	Parison control	100 dot MOOG wall thickness controller
	Heating power(KW)	40	60	75	85
Moulding clamping system	Mould size(mm)	1600x1500
	Mould thickness range(mm)	910-1300
	Clamping force(KN)	800
Electrical control Cabinet	Temperature controlling	SIEMENS temperature-control modules
	PLC	SIEMENS
	Touching screen	SIEMENS
Hydraulic system	Main oil pump motor(KW)	37
	Servo motor(KW)	7.5
Basic Parameter	Max.Volume of product	1000
	Outer size L*W*H(M)	8*5*5.5
	Total power installed(KW)	180	210	260	310
	Average power consumption(KW)	100	120	160	210
	Weight(T)	21	28	31	38

OUR WORKSHOP
Our Advantages
Company Profile
Qingdao Weier Plastic Machinery Co., Ltd. is engaged in macromolecule science and producing plastic machinery. Our production lines, such as aluminum plastic composite pipe unit, PVC foam pipe unit, plastic profile, board and sheet units, HDPE gas pipe unit, and PP-R (PEX) pipe unit, are characterized by stable performance and advanced technology which are welcomed by our customers. The new developed PVC plywood board unit, plywood decorative strip and foamed sheet unit, macromolecule paint free board unit and PET strapping band unit are in leading place in China. The new developed TPU high pressure oil transportation and TPU moving oil warehouse equipment in war industry have been put into production, which has been approved by authority in China. Our products have been exported to many countries in the Middle East, Africa, and Southeast Asia. Please feel free to contact us for more information.

FAQ
Q1: How to visit our Factory? (not a trade company)
A:Qingdao Airport → Pick you up
Q2: How does your factory do the quality control?
A:"QUALITY FIRST " We purchase qualified parts, test the machine every step when manufacturing.
Q3: How about the installation?
A: Option 1: Our engineer installs the machines for you, also train your staff until they can run the machine independently.
Option 2: You learn installation in our factory.
Q4: Do you have after-sale service?
A: The supplier is responsible for installation, debugand training, we will realize guarantee of repair; Replacement and refund of substandard products within one year after the machine leaves factory. Fittings of the machine will supply at preferential price after one year
Q5: How about the payment term?
A:30% deposit, 70% after testing machine in our factory Before Shipping By T/T, VISA,L/C.
