China Automatic Extrusion Plastic Big Tank Barrel Drum Container Blow Molding/Moulding Machinery
| Negotiable | 1 Piece (MOQ) |
Basic Info.
Model NO.
PXB3000L
Making Method of Parison
Extrusion-Blow Molding
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Bottom Blowing
Available
Material
PP, PE, ABS...
Total Weight
65t
Output(Dry Cycle)
150 PC/Hr
Die Head Option
Accumulator Head
Transparent Line
Available
Production Usage
Water Tank, Toys, Auto Parts, Drum, etc
Multi-Layer
Available
Multi-Color
Available
Screw Diameter
120mm
Transport Package
Film Packing with Wooden Bottom
Specification
Max capacity 3000L
Trademark
Puxin
Origin
Jiangsu
HS Code
847730100
Product Description

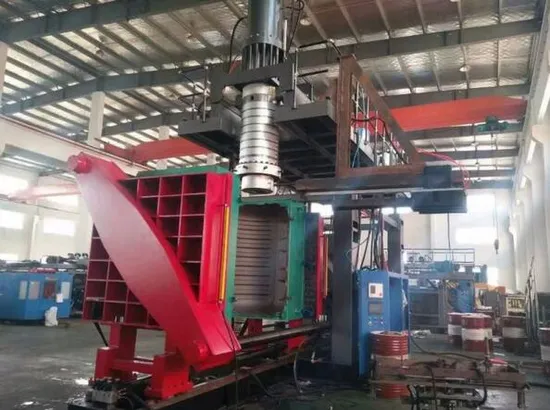

PXB3000L
Blow Molding Machine
- Fixed open-closing and accumulator die head adopts oblique arm double drawbar synchronous clamping mechanism.
- Large space for mold, clamping stable, durable mode platen, mold clamping by oil cylinder pressure directly.
- Perfect Usage for 3000L Container, Large Barrel, Outdoor Toys, etc.
- High efficiency mixing screw mechanism for HMWHDPE on extruder unit.
Configuration List
| PLC | MITSUBISHI | Japan |
| Touch Screen | WEINVIEW | Taiwan |
| D.C Driver | Eurotherm | U.K |
| Power Supply | MEAN WELL | Taiwan |
| Relay | OMRON | Japan |
| Hydraulic Valves | YUKEN | Japan |
| Hydraulic Pump | YUKEN | Japan |
| Contactors | LS(LG) | Korea |
| Solid relay | FOTEK | Japan |
| Breaker | LS(LG) | Korea |
| Temperature Control Module | MITSUBISHI | Japan |
| Oil Sealing | DZ | Taiwan |
| Oil Tube | LIEBAO | Taiwan |
| Transducer | GEFRAN | Italy |
| Proximity Switch | KINGTON | Taiwan |
| D.C Motor | XIMA | China |
| Air Valve | FESTO | Germany |
| Parison Controller | Moog | Japan |
| Servo Valve | Moog | Japan |
Parameters:
| Machine model | PXB3000L | ||||
| Material | PE,PP,ABS... | ||||
| Max container capacity | L | 3000 | |||
| Output(dry cycle) | pc/hr | 150 | |||
| Machine dimension(L×W×H) | M | 9.5×5.8×7.5 | |||
| Machine weight | T | 65 | |||
| Clamping Unit | |||||
| Clamping force | kn | 1200-1500 | |||
| Mold platen size(W×H) | mm | 1950×1950 | |||
| Platen moving stroke | mm | 1200-3400 | |||
| Platen moving stroke | mm | 2200 | |||
| Max Mold Size (WxH) | mm | 1700×2200 | |||
| Mold thickness | mm | 1250-1450 | |||
| Power | |||||
| Servo oil pump motor power | KW | 37 | |||
| Servo pump displacement | L/MIN | 200 | |||
| Blow pressure | MPA | 1 | |||
| Air consumption | M3/MIN | 3 | |||
| Cooling water pressure | mpa | 0.5 | |||
| Water consumption | L/min | 100 | |||
| Average energy consumption | KW | 100-120 | |||
| Extruder unit | |||||
| Screw diameter | mm | 120 | |||
| Screw L/D ratio | L/D | 30 | |||
| HDPE Melting capacit for HDPE | kg/hr | 350-420 | |||
| Number of heating zone | zone | 6 | |||
| Screw heating power | kw | 39 | |||
| Screw fan power | KW | 0.6 | |||
| Extruder motor power | kw | 110 | |||
| Die head | |||||
| Number of heating zone for single die head | zone | 6 | |||
| Heating power for single die head | kw | 39 | |||
| Max die-pin diameter | mm | 550 | |||
| Accumulator capacity | L | 80 | |||
| (HDPE) Accumulator weight(HDPE) | KG | 60 | |||
Delivery Time:
- No later than 90 days after receipt of the deposit
Training:
- We provide training service for two or three operating men for free (but the cost for trainer's board and lodging is not included).
Installation:
- The supplier will send one specialist to test run the machine until it is running in normal state.
Guarantee:
- Our guarantee is valid for a period of 12 months. If the malfunction caused of the machine's self quality, we will troubleshoot it for free.
Auxiliary Equipments:
- Auxiliary equipments for production line are available and optional, please kindly ask for quotation.
