Taiwan Quality HM-RD42/1200 Taladro Radial Drilling Machine

Product Description

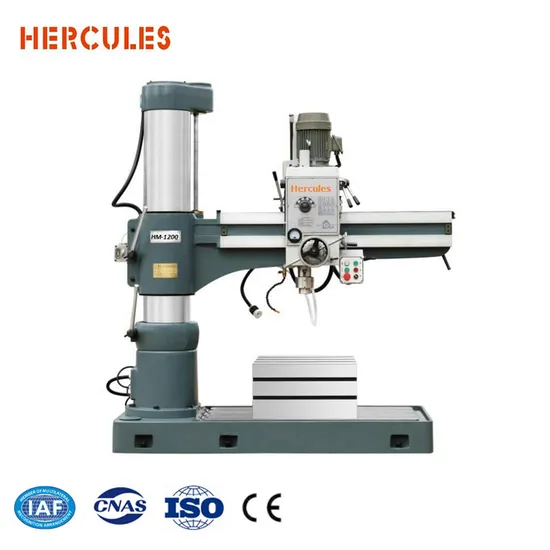

Hercules Radial Drilling Machine
Product Description
Machine Construction:

Meehanite® Castings,FC30 fine grain and high density cast iron using the superior Meehanite® process yields superior vibration dampening and improved surface finish and better tool life Turcite-B Premium slide Coated way surfaces and processed with hand scrapping HM-1600 with hardened slide way HM-1000& HM1200 with hardened steel tape and double slide construction Casting with nature annealing and stress release for more than 6 months Table
With fine grinding on the top , side and bottom surface Base with fine grinding Gear box Original TAIWAN made gear and shaft for high speed driving . All gear with fine teeth grinding to reduce the noise . Spindle
Spindle made of Cr-Mo Alloy and processed with tempering and carburizing treatment. Spindle with better rigidity and long lasted Electrical components
TAIWAN MAIN MOTOR AND SCHNEIDER ELECTRICAL COMPONENTS Detailed Photos

Product Parameters

Technical specification	Unit	HM-RD42/1200
Max. Drilling dia.	mm	Iron 42
Max.Tapping dia.	mm	M24
Distance from spindle nose to base	mm	300-1200
Distance from spindle nose to table	mm	260-1200
Spindle travel	mm	220
Spindle bore		MT4#
Spindle speed range	r/min	88-1500(60Hz) 72-1243(50Hz)
Spindle speed step		6
Spindle feeding range	mm/rev	0.06-0.20
Spindle feeding step		3
Rocker rotary angle	deg	±180
Main motor power	kW	2.25
Movements motor power	kW	0.75
Machine dimensions	mm	1850*850*2055
Packing dimensions	mm	2050*950*2350
Machine weight	kg	1750
Packing weight	kg	1930
