Rubber Spiral Steel Wire High Quality SAE 200r2 Two Layer Hydraulic Hose

Product Description

Product Name
SAE R2AT Two Layer Hydraulic Hose
Product Description

Name:High-quality Special High Pressure Hydraulic Hose

Size:3/16" - 1 13/16" Hydraulic Hose

Material:NBR

Reinforcement:Two braid of high-tensile steel wire

Cover:impregnated textile braid

Length:100m/roll

Working pressure:350~6000psi

Standard:SAE R5 Hydraulic Hose

Color:Black

Type:Hydraulic Hose

Processing Service:Cutting

Main application: Low-medium pressure lines,including mobile,machine tool and agricultural application,using petroleum or water-based hydraulic fluids.

Hydraulic Hose	Reinforcement	Product Name
	One steel qire braided	SAE R1AT 1SN,SAE R1AT/DIN 1ST,DIN 1SNK,DIN/EN 1SN WG,DIN 1SC,SAE R5,SAE 100R17
	Two steel wire braided	SAE R2AT/DIN 2SN,SAE R2AT/DIN 2ST,DIN 2SNK,DIN 2SC
	One/two wire braided	SAE R16
	Four steel wire spiral	SAE R9AT,SAE R10,SAE R12,DIN 4SP,DIN 4SH
	High flexibility nylon or thermoplastic	SAE R7,SAE R8

Inner diameter × layer	ID(mm)	tolerance(mm)	Steel wire layer diameter(mm)	tolerance	Outer diameter(mm)	tolerance(mm)	Work pressure(MPa)	test pressure(MPa)	Blasting pressure(MPa)	Bending radius(mm)	reference weight(kg)
			size
6×2SP	6	0.5	12.5	0.6	16	0.8	60	120	180	130	0.40
8×2SP	8	0.5	14.5	0.6	18	0.8	60	120	180	145	0.55
10×2SP	10	0.5	17.0	0.6	21	0.8	60	120	180	160	0.75
13×2SP	13	0.5	21.6	0.8	25	1.0	46	92	130	210	0.90
16×2SP	16	0.5	24.5	0.8	28	1.0	35	70	105	260	1.00
19×2SP	19	0.5	27.0	0.8	31	1.0	28	42	84	280	1.30
22×2SP	22	0.8	31.0	0.8	35	1.0	24	36	72	320	1.45
25×2SP	25	0.8	33.0	0.8	38	1.5	21	42	63	360	1.54
32×2SP	32	0.8	41.0	0.8	46	1.5	20	40	60	460	2.14
38×2SP	38	0.8	50.0	0.8	54	1.5	18	36	54	560	2.60
51×2SP	51	0.8	60.8	1.0	65	1.5	14	28	42	720	3.42
64×2SP	64	1.0	72.0	1.0	78	1.5	12	24	36	790	4.10
76×2SP	76	1.0	92.0	1.0	99	1.5	10	20	30	920	12
102×2SP	102	2.0	123	2.0	130	2.0	9	18	27	1200	14
127×2SP	127	2.0	134	2.0	141	2.0	8	16	24	1500	16
152×2SP	152	2.0	173	3.0	180	4.0	8	16	24	2280	18
203×2SP	203	2.0	225	3.0	232	4.0	8	16	24	3050	24
254×2SP	254	2.0	280	3.0	288	4.0	8	16	24	3810	30
305×2SP	305	2.0	330	3.0	338	4.0	8	16	24	4510	36

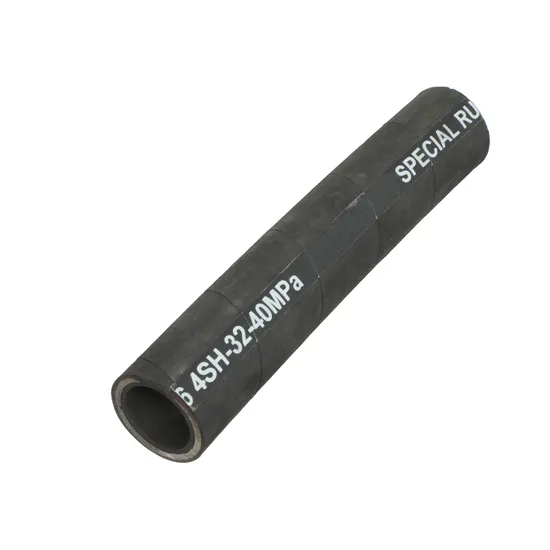

Detailed Photos

Production Workshop
Product Application

International Experiance
Certifications
Our Advantages
1.Q: Are you manufacture or trade company?
A:We are manufacture factory
2.Q: How can I get the samples?
A:If you need some samples to test, we can make as per your request .The transportation freight of samples and our samples cost wil be on the buyer, while the samples cost can be refundable after you place the order if the amount meets our requirement.
3.Q:How much the transportation freight of samples?
A:The freight depends on the weight and packing size and your area.
4.Q:How long can I expect to get the sample?
A:The samples will be ready for delivery within 7 days. The samples will be sent via express and arrive in 4-7 days.
5.Q:Is OEM, ODM accepted?
A:Yes,sure,we can print your logo.
6.Q:How to order?
A: Please send us your purchase order by Email or you can ask us to send you a invoice for your order. We need to know the following information for your order:
1) Product information-Quantity, Specification (Size, Material, Technological and Packing requirements etc.)
2) Delivery time required.
3) Shipping information-Company name, Street address, Phone &Fax number, Destination sea port.
4) Forwarder's contact details if there's any in China(if have).
