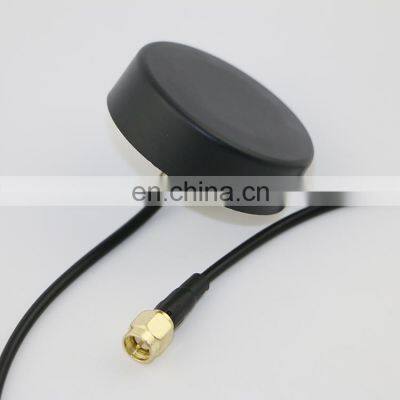

GPRS GSM LTE WiFI Communication Antenna GSM car antenna, screw mount Antennas for Communications

Product Description

Product Description
Description
( I ) Product Overview
Frequency(MHz): 850-1900/900-1800
Band width(MHz): 90/280
VSWR ≤1.5
Gain(dBi): 2
Max Input power(W): 60
Input Impedance(Ω): 50
Polarization: Vertical
Antenna Size(mm): Φ46×14.5
Cable Length(mm): 2,3,5 etc.
Cable Type: RG174
Connector: SMA/SMB/SMC/BNC/FME/TNC/MCX/MMCX etc.
Mounting: Screw(Hole/Roof)
Housing: Black
Storage Temperature: -45°C to+75°C
Operating Temperature: -45°C
( II ) Characteristic curve
Why Choose Us
FAQ
Q1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.
