High Quality Plough Harrow Part 65mn Boron Steel Disc Blade From China

Product Description

Yucheng Hongri Machinery Factory
Product Technical Parameter
Product description:

Material:	65Mn,Boron steel
Hardness:	HRC38-45, HRC42-50
Thickness:	3.0-12.5mm
Size/dimension:	12"-44"(300mm-1120mm)
Edge of Disc Blade:	Round or Notched.
Shape:	Flat,Concave or Wavy
Production Capacity:	7 Million pcs annually
Colors:	Blue or black ( matt or bright), Made to your order
Hole Type:	Square, Round, Hexagon, Clover Leaf, Optional
Working Depth:	200mm, 300mm
Working Width:	3.4M ~ 6.2M
Packing:	Non-fumigation wooden case, metal case according policy of different regions
Feature/Characteristic:	Highest wear life due to special edge making process

Disc blade are suitable for disc harrow and agricultural machine, as usual teh material is 65Mn spring steel and 40MnB steel. As usual 65Mn spring steel hardness is 40-45HRC, 40MnB steel hardness is 43-48HRC. We are able to producting alot of kinddisc blade, max diameter is 46inch(1170mm). their is an existing advanced productiion line of forging ,casting ,maching,heat treatment
in the company.The products export to Europe,America,Astrailia,Southest Asia and other
countries and regions all teh year round and enjoy good fames in teh user.

Common Specifications of Disc
Dia.		Concavity	Thickness
mm	inch	mm	mm
255	10	12	3
305	12	19	3
330	13	25	3
355	14	38	3
410	15	38~50	3
430	17	57	3,4
460	18	38~60	3,4
480	19	57	3,4
510	20	44~63	3,4,5
535	21	63	3,4,5
560	22	60~85	4,5,6
585	23	75~90	4,5.6
610	24	75~95	4,5,6
660	26	86~115	5,6,7,8
710	28	100~130	5,6,7,8
760	30	120~135	6,7,8,10,12
810	32	120~140	8,10,12
910	36	120-200	8,10,12
960	38	120-200	8,10,12

Note: We can produce according to the size, size and shape of the disc blades you need. Product Images:

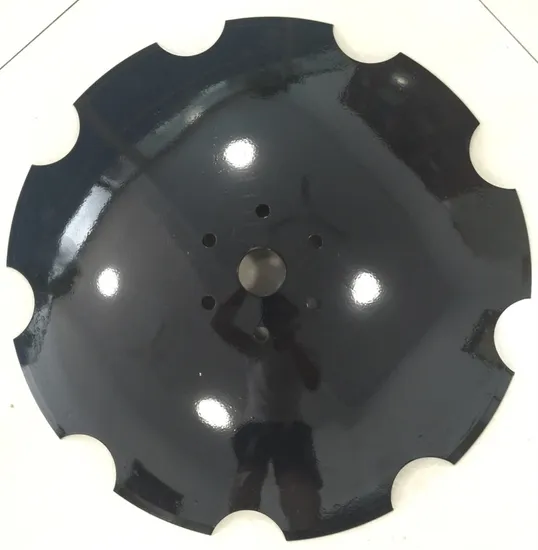

Plow discs, harrow discs, color can be customized
Our material, carbon steel (65Mn) and boron steel (30Mnb5) can be selected
We have always been committed to providing customers with the best
products. Each disc is heated individually to heat it evenly. At the same time, according to different sizes and thickness, the heat treatment temperature and time are strictly controlled to obtain hardness and toughness. It can stand the test
Packing & shipping:
We ship a large number of goods to the United States, Russia, Mexico, South America, Southeast Asia and other regions, and can be transported together with light goods such as sprayers and tires to save freight
Other Products: After Service: 12 months guarantee of the main parts, we will send the guarantee parts together wif the machine in your next order or we can send them by air express if you need it urgently. Our Company :

Business type	Manufacture
Location	Shiliwang Industrial Zone of Yucheng, Shandong,China
Year Established	2003
Occupied area	50 Acres
Company certification	CE, ISO9001,SGS
Main product	disc harrow, disc plough, trailer, boom sprayer , rotary tillers, potato planter ,plowing blade, plough blade, soil-loosening shovel and so on. With good quality, excellent performance, our products annually export to countries around the world, and we have gained the majority of customers trust.

FAQ:
1.Q: Full price list for these products
A: If you need the price list for these products, please notify the product model so that I can quote you accordingly. Please understand we have a very wide product range, we don't usually offer full products price list.
2. Q: Business terms
A: Shipment time: 25-40days after your payment
Shipment: By sea
Loading port: Qingdao port, China
Destination port: ...To be advised
Payment: T/T
Warranty: 1 year
3.Q:How can I order from you?
A: Please send us your enquiry list; we will reply you within two working days.
4.Q:If the finger I look for are not in your catalogue, what should I do?
A: We can develop it according to your drawing or sample.
5. Q: Why choose Hongri for cooperation?
A: Comparing with our competitors, we have much more advantages as follows:
1. More than 30 years in manufacturing farming machine
2. More Professional Sales staffs to guarantee the better service
3. More agri machines for your choice
4. More New products into your range to avoid price competition
5. Larger quantity production and shipment
6. Better quality to guarantee better Credit.
7. Faster delivery time: Only7days
8. More stick quality checking before shipment.
9. More reasonable after-sales service terms.
10. More famous brand: HONGRI" brand and "CE"ceitification.;SGS certifications
11.Lower repair rate and bad review rate
12. Have received unstinting support from the Chinese government.
If you have any questions, please feel free to contact me.
