Tubular Knitting Before Dyeing Resewing Back Sewing Machine

Product Description

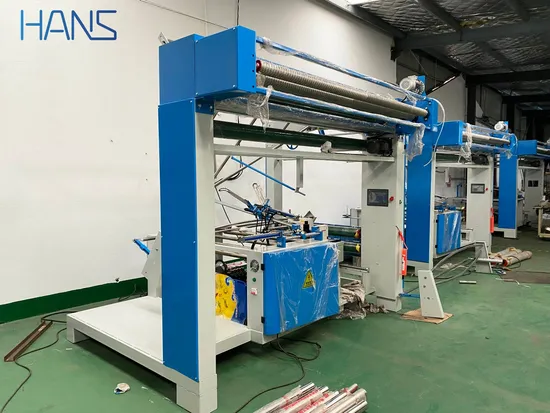

Tubular knitting before dyeing resewing back sewing machine
Application:
- The tubular back sewing machine is major used for tubular knit fabric after pre heat setting process, with the folding and sewing unit, fabric will resewing to a tubular form, with the help of this process, fabric will achieve a uniform dyeing in the dyeing machine.
Machine Process:
Open width Fabric Entry → Folding → Sewing → Tubular fabric exit
Features:
- Touch screen controlled, fully automatic tubular sewing
- Equipped with fabric inlet tension adjustor device
- Automatic stop during machine running without fabrics
- Sewing device: Juki
- Edge width adjustable
- Infrared centering device control the centering process of fabrics, make sure fabric running in the center area of the machine
- This tubular sewing machine is equipped with 3 spinder spreader, make sure good fabric edge opening result before the sewing device
- Speed adjustable
- Photo electrical device for automatic edge tracing
- High automation grade, low fault rate
- Air pressure: 6kg/cm3
- Speed: 0-40m/min (adjustable)
- Machine width: 2600mm
Specification:

Model	HTS-2600
Working width	2400mm
Voltage	380V/50HZ
Sewing speed	0-40m/min
Installed power	5KW
Machine weight	1600KG
