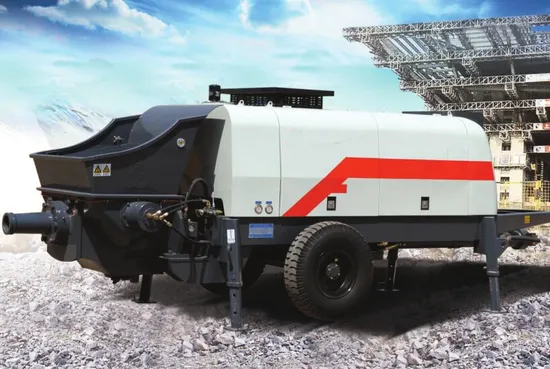

China Concrete Pump Hbts80-16-110 Hot Sale
| US$20,000.00-35,000.00 | 1 Piece (MOQ) |
Basic Info.
Structure
Steel Welded
Productivity
90m²/h
Feeding Height
450
Vibrating Amplitude
0.8mm
Certification
ISO9001: 2000, CE
Condition
New
Color
Yellow
Transport Package
Standard Parkage
Specification
HBTS80-16-110
Trademark
MACPEX
Origin
China
HS Code
8413400000
Production Capacity
200
Product Description
Product feature:
1.Hydraulic system change direction with electrical control. It is convennient for use and maintenaince.
2.High and low pressure use a key to swichover, may swichover at any time, no leakage, no polution.
3.Electricl system adopts PLC from OMRON Japan and the other element from world famous company. The control circuitry is simle and works credibly.
4.High quality seal from PARKER company, stop the leakage in hydraulic system.
5.Cooling syetem adopts oil-air cooling device with big power.It depress the quantity of heat efficency andf ensure the reliability if hydraulic system.
Parameter:
| HBTS80-16-110 | |||
| Items | Units | Parameters | |
| Whole performance of machine | Max. theo. concrete output (L./H.) | m3/h | 84/50 |
| Max.concrete pumping pressure (H. /L.) | MPa | 8-16 | |
| Distribution valve type | S Valve | ||
| Concrete cylinder diameter×stroke | mm | Ф200×1800 | |
| Hopper capacity×feeding height | L×mm | 800×1400 | |
| Outlet diameter | mm | Ф180 | |
| Power system | Electrical engineering model | Y280M-4 | |
| Electrical engineering power | kW | 110 | |
| Rotate speed | r/min | 1480 | |
| Hydraulic system | Circuit type | Open circuit | |
| Pumping system pressure | MPa | 32 | |
| Mixing system pressure | MPa | 6-8 | |
| Capacity of oil tank | L | 560 | |
| Pump range | The biggest transportation is away from vertically (/Level) | m | 220/1000 |
| Other parameters | Max. aggregate diameter | mm | Slick scree: 50, |
| Inside diameter of delivering pipe | mm | Ф125 | |
| Dimensions:length×width×height | mm | 6000×2100×2250 | |
| Total weight | kg | 6300 | |
