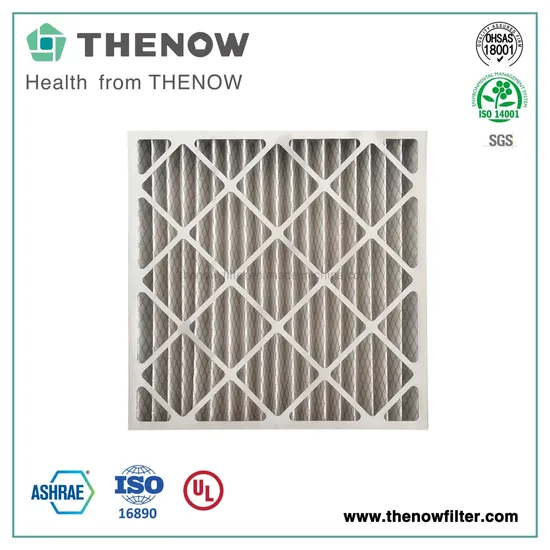

Merv 8 G4 Disposable Panel Primary Filter with Cardboard Frame

Product Description

Foreword: Thank you for your interest in advance!
It has been 16+ years since we processed the first HVAC air filter.
You can find various replaceable filters for Camfil, AAF etc. We have all kinds of frames and filter media available. As for prefilter and secondary filters, we buy the filter media of optimum quality from Chinese native market. Their quality is stable and super. As for the HEPA filters, the glassfiber media is from American Lydall and Suzhou H&V. We control the quality from the source.
There are plenty of testing machines in our laboratory including filter media testing and completed filters tested.
Welcome to have a Virtual tour to our factory by clicking the following:
https://thenow-filter.en.made-in-china.com/ Product Description Merv 7/Merv 8/G3/G4 Disposable Pleated Panel Primary Filter with Cardboard Frame for HVAC System
>Structure:

Frame	Filter Media	Face net
Water resistant cardboard	Polyester/Polycotton	Spot mesh, expanded mesh

>Feature: Primary Filters with G4 - F5 Efficiencies Cotton / Polyester Pleated Media Corrosion-Resistant Expanded Mesh Moisture-Resistant Kraft Board Extended Surface Media Area ElectroStatic (ES) Media of MERV 11 >Technical data: G3~G4 EN779; MERV5~8 ASHRAE Available in 23mm, 44 and 95mm depth Average arrestance: 92%(ASHRAE 52.2-1992) DIN 53438 Flammability: F1 UL 900 Standard: Class 2 Max air flow rate: 125% of nominal air flow Final pressure drop: 2-3 times initial pressure drop Thermal Stability: Up to 70ºC Moisture resistance: 100% RH >Sample Data:(for more information, you can download our leaflet)

Type	W*H*D(inch)	W*H*D(mm)	Filter Class	Filter Area(m2)	Airflow(CMH)	Intial Pressure Drop(Pa)
Standard airflow	24*24*1	595*595*23	G4	0.56	1900	85
High airflow				0.83	2600	65
Standard airflow	20*20*2	495*495*45	G4	0.61	1330	55
High airflow				0.75	2000	80
Standard airflow	24*24*4	595*595*95	G4	1.68	1900	45
High airflow				2	3400	70
Standard airflow	12*24*4	287*595*95	G4	0.84	930	45
High airflow				1	1600	70

Company Profile >Company Show
Thenow Purification Technology has focused on air filtration for many years: 16+ years for HVAC air filter and 21+ years for Industrial dedusting dust collector air filters. We hope to bring the world more clean air with quality and environmental friendly filters.
>Certificates and Test reports
Standard is a ruler for the filters from all over the world. We have been trying to meet the most strict standard. Our HVAC air filters have been certified by CE, SGS and tested according to EN779, EN1822, Ashare and the latest ISO16890. You can rest assured when make a decision to buy. Click here if you want to see details.
>8+ years exporting experience
We have been to Powtech In Nurnberg in 2014, Achema in Frankfurt in 2015, AHR in Chicago in 2018, Chilliventa in Nurnberg in 2018. And our filters have been to all over the world: Europe, Middle East area, Africa, South Asian area, South American area and North American area.
>Professional Packing and Container Loading
Packing is important especially for carboard frame disposable filters and HEPA filters with glassfiber filter media. So we are very careful with it.
