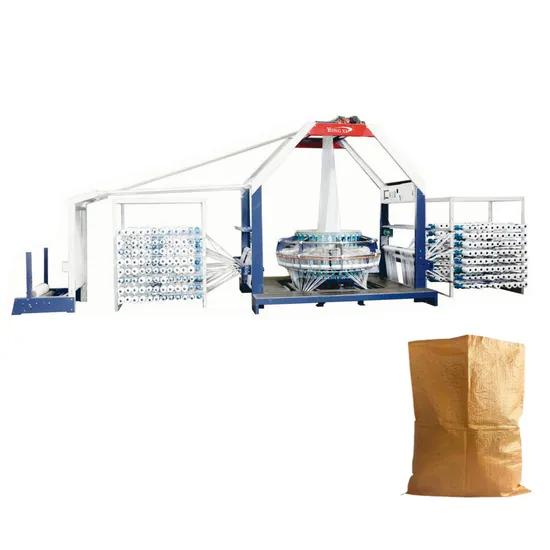

PP Woven Bag Four Shuttle Circular Loom Machine

PP Woven Bag Four Shuttle Circular Loom Machine

US$4,000.00-5,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
YX-FYB750/4
Computerized
Computerized
Precision
High Precision
Certification
CE, ISO9001: 2000
Warranty
1 Year
Customized
Customized
Condition
New
After-sales Service
Video Technical Support
Model No.
Yx-Fyb750/4
Product Name
Four Shuttle Circular Loom
Working Width
300-750mm
Application
PP Woven Bag
Transport Package
Nude Package or Wooden Case
Specification
8600*2200*3200mm
Trademark
Yongxu
Origin
China
HS Code
8446219
Production Capacity
2200meters / 24hours

Packaging & Delivery

Package Size
230.00cm * 230.00cm * 330.00cm
Package Gross Weight
1500.000kg

Product Description

Product Description

Application
To weave PP/HDPE fabric for woven bag, cement bag, rice bag, flour bag, pet food bag, animal food bag, fertilizer bag, chemical bag, etc.
Technical Data
S/N. Items Parameters
1) Model YX-FYB500/4 YX-FYB750/4 YX-FYB1200/4 YX-FYB1500/4
2) Shuttle 4 Shuttles 4 Shuttles 4 Shuttles 4 Shuttles
3) Folded width 120-500mm 300-750mm 600-1100mm 950-1300mm
4) Production speed 2200meter/day, depend on the final width of yarn. 2200 meter/day, depend on the final width of yarn. 2000meter/day, depend on the final width of yarn. 2000meter/day, depend on the final width of yarn.
5) Number Of Warp Creels(pcs) 576 768 896 1120
6) Main motor power(kw) 1.5kw 2.2kw 2.2kw 3kw
7) Total power(kw) 2kw 2.7kw 2.7kw 3.5kw
8) Prime motor rotational speed(r/min) 160-200 160-200 150-190 120-160
9) Installing Dimensions(L*W*H) 8400*2000*3200mm 8600*2200*3200mm 9200*2500*3200mm 9500*2900*4000mm
10) Weight(kg) 1200 kg 1500 kg 1800 kg 2000 kg

Composition Of The Standard Loom
Frame 1 set
Creel Stand 2 unit
Central drive system (small cam, A.C. motor) 1 unit
Positive warp infeed system with torque motor 2 unit
Warp break detecting system 1 unit
Weft break detecting system 1 unit
Weft pre exhaust detecting system 1 unit
Shuttle assembly 4 units
Shuttle wheel with
Shuttle motion guide 1 unit
Weaving size ring 1 unit
Bobbin storage above the intake 2 units
Manual operation control unit 3 units
Fabric haul-off system 1 unit
Electronic meter counter 1 unit
Standard width surface winder 1 unit
Loom control system 1 unit

Remark
* The data depends on weaving construction, size and weight of fabric, specification and quality of tape.
** Specification and dimensions are subject to change without prior notice.
*** Special specification and versions on request.
Pingyang Yongxu Packaging CO.,LTD Founded in 2010 at Xiaojiang Town, Wenzhou City, Zhejiang Province, China,
We are professional for complete line of PP Woven bag making machines such as Cement Woven Bag Making Machine, ,Rice Woven Bag
Making Machine, fertilizer Woven Bag Making Machine, Grain Woven Bag Making Machine, corn Woven Bag Making Machine, soybean Woven bag making machines, sesame Woven Bag Making Machine, Jumbo Woven Bag Making Machine, FIBC Woven Bag Making Machine, and Mesh Bag Making Machine, Leno Bag Making Machine, Plastic Rope Making Machine as well.We also make PP Woven bag Production Line such as Cement Woven Bag Production Line, Rice Woven Bag Production Line, fertilizer Woven Bag Production Line, Grain Woven Bag Production Line, corn Woven Bag Production Line, soybean Woven bag Production Line, sesame Woven Bag Production Line, Jumbo Woven Bag Production Line, FIBC Woven Bag Production Line, and Mesh Bag Production Line, Leno Bag Production Line, Plastic Rope Production Line.
It is a specialized manufacturer of series of whole set plastic machinery products such as Complete Line of Woven Bag Making Machines, PP Mesh/Leno Bag/FIBC Woven Bag/Container Bag/Cement Bag/Rice Bag Making Machine,Plastic Bag Making Machine, Plastic Rope Making Machine. Having passed ISO9001:2000 International Quality System authentification and got CE Certificate.
