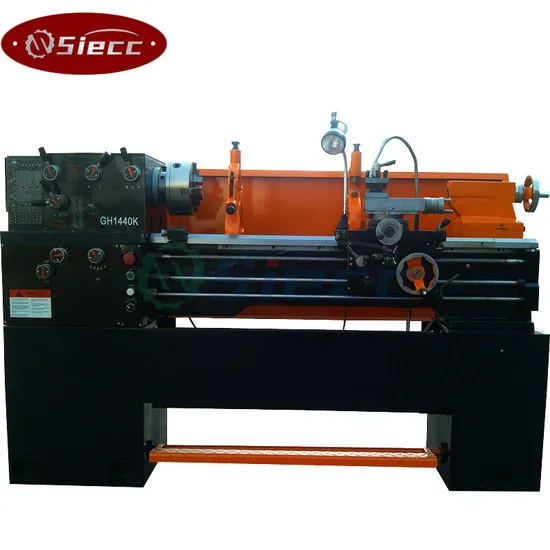

Steel Metal High Quality Standard Lathe Machine
| US$5,000.00-6,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CH SERIES METAL LATHE MACHINE
Guide Rail
Horizontal Guide Rail
Tool Holder
Double-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Transport Package
Steel Pallet Packaged
Specification
CE/ISO/SGS/GOST CERTIFICATION
Trademark
SIECC
Origin
Haian City, Nantong, Jiangsu
HS Code
8458190000
Production Capacity
200 Set /Month
Product Description
Lathe Machine:Tailstock locked by thread and camlock.
Spindle hole 52mm, the nose conforms to SO-C6
Kinds of threads.
| Model | CH6236G/750MM | CH6236G/1000MM | |
| CAPACITY | Max.swing over bed | 360mm | |
| Max.swing over cross slide | 198mm | ||
| Max.swing over gap | 476mm | ||
| Center Distance | 750mm | 1000mm | |
| HEADSTOCK | Spindle hole | 38mm | |
| Spindle nose | ISO-D5 | ||
| Spindle taper | MT5 | ||
| Spindle speed(Number) | (8steps)70-2000rpm | ||
| FEEDS | Metric threads range | 26kinds 0.4-7mm | |
| Inch threads range | 34kinds 56-4 T/inch | ||
| Longitudinal feeds range | 20kinds 0.052-1.392 mm/r | ||
| Cross feeds range | 20kinds 0.078-1.044 mm/r | ||
| TAILSTOCK | Taper of tailstock sleeve | MT3 | |
| Max.travel of tailstock | 100mm | ||
| MOTOR | Main drive motor | 1.5KW | |
| PACKING L*W*H | Center Distance(750mm) | 175*75*100cm | 200*75*100cm |
| N.W/G.W | Center Distance | 570/620kg | 640/690kg |
