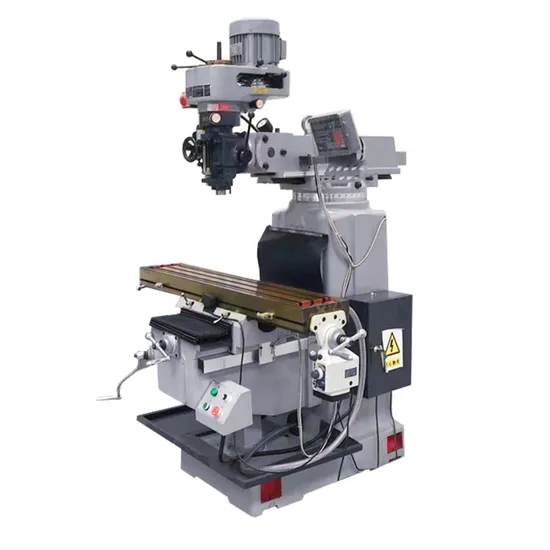

Molds Manufacturing R8 Spindle Knee Type Heavy Duty Turret Mill for Sale

Product Description

Product Description
FEATURES
1.The slider adopts dovetail for more stability.
2.Large workbench area and wide working range.
3.Taiwan screw and easy to operate.
4.No. 4 turret milling head from Taiwan.
5.The base and bed are integrally cast for greater rigidity
The base and bed of the turret milling machine are integrated, strong rigidity;
The turret milling head can reach more than 4540 revolutions, with higher precision;
The spindle can feed automatically and can rotate left and right, front and back respectively

Detail display
Digital display(DRO) (Additional) Worktable The head
Optional types(vertical&horizontal spindle)

Product Parameters

Specification	4H turret milling machine
Bench size(mm)	1270×254
Table travel(mm)	780-850
Table lateral travel(mm)	400
Vertical travel(mm)	450
Number and size of T-groove (mm)	3X16
Telescopic arm stroke (mm)	400
Distance between spindle end and bench(mm)	420
Spindle taper	R8
Spindle stroke (mm)	127
Spindle speeds range(r.p.m)	60HZ 60-4540
Rotary angle of the head	±45°
Main motor power(Kw)	3
Overall dimensions(mm)	1700×1660×2000
Net weight (kg)	1200
