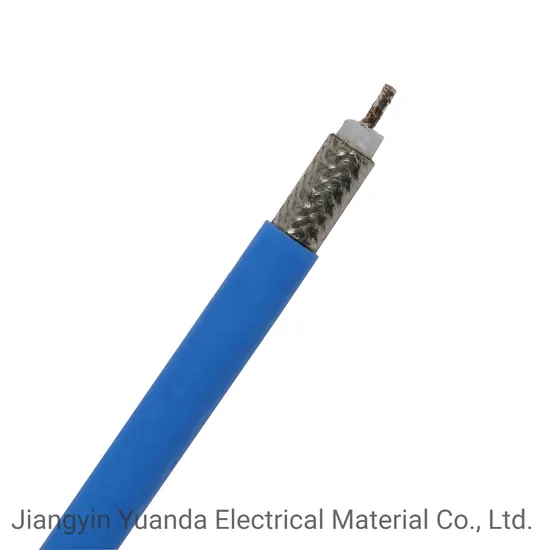

Rg178 (SF46F-50-1) Silverplated Copper Conductor PTFE Insulation Coaxial Cable

Product Description

RG178(SF46F-50-1) Silverplated Copper Conductor PTFE Insulation Coaxial Cable
Technical Data:
1. Inner conductor: Silverplated copper
2. Insulation: PTFE
3. Braid: Silverplated copper
4. Jacket: FEP (F46)
5.Temperature: -65~200° C
6. Meet the standards: SJ50973/GB12269-90/GJB973-90.
7.Application: Coaxial cables are used in high frequency transmission, especially for transmitters and receivers, computers, radio and TV transmissions. The mechanical, thermal and electronic properties of coaxial cables mean that can be used up to the GHz levels, as per cable type.
Specification

Type	RG178 (SF46F-50-1)
Inner conductor No./mm	7/0.102
Insulation mm	0.86
Braid mm	0.10
Jacket mm	1.80
Impedance Ω	50
Testing voltage KV	1
Attenuation dB/m	200MHZ	0.70
	1000MHZ	1.70
	3000MHZ	3.08
	6000MHZ	4.80
Capacitance	105

Company Information
Jiangyin Yuanda Electrical Material Co., Ltd. is located in Jiangyin, the most developed city in Jiangsu Province ,China. Facing Taihu Lake in the south and bordering Changjiang River in the north, it is well located and easy of access as Huning and Xicheng Freeway Stretching over the district. It's about 100 km from Shanghai Pudong Airport and Nanjing Lukou Airport and it is near Wuxi and Changzhou Airport too. We believe that our unique location and convenient transportation could be your ideal business choice.
Our main products include:

1. Series of automotive cables which can meet various standards , like ISO, SAE, JASO, JB/T, VW, LV, GMW and etc. ; Especially newly developed aluminum conductor battery cables , new energy HV (un)shield cables , will be your good choice for cost saving and light weight. 2. RF, RG series of coaxial cables with abroad application in cellphone , laptop , router , 5G/6G ,war industry , smart car and etc. for communication ; 3. UL, VDE, CCC verified , PVC/cross-linked polyolefin/silicone rubber/fluoroplastic insulated series of household electric appliance wires ; 4. Heat resistant silicone rubber sleeves with (or without) fiberglass braid , widely used in household appliances, motors, vehicles and etc. ; 5. Special cables applicable to urban orbitals, photovoltaic systems, wind power generation, space navigation and etc.. FAQ: 1.Q: Are you trading company or manufactory? A: We are factory, with the belief "Good faith makes quality, Quality wins market". 2.Q: How long is your delivery time? A: Generally it is 5-10 days if the goods are in stock. or it is 15-25 days if the goods are not in stock, it is according to cable type and
quantity. 3.Q: What certifications do you have? A: We have UL, CUL, VDE, RoHS, REACH and SGS for our wires& cables. 4.Q: What is your payment term? A: We have several payment terms for you, T/T, Western Union, L/C, etc. 5.Q: Can you do the design for us? A: Yes, we have a professional team having rich experience in wire and cable design and manufacturing.Just tell us your demands, we will
manufacture the cable as your requirement.And we can also print your Logo on the wire which can never be erased. Contact us:

Name	Cindy
Tel/Mob Fax	0086-510-86513128 0086-510-86510356
Your enquiry will be highly appreciated!

Any questions and needs in electric wires and cables, please feel free to contact with us!
