High Quality Tank Container Glassfiber Tank Winding Tank GRP FRP Fiberglass Products Filament China Tank Supplier

Product Description

high quality tank container glassfiber Tank Winding Tank GRP FRP Fiberglass Products Filament China Tank Supplier
Product Description
high quality tank container glassfiber Tank Winding Tank GRP FRP Fiberglass Products Filament China Tank Supplier

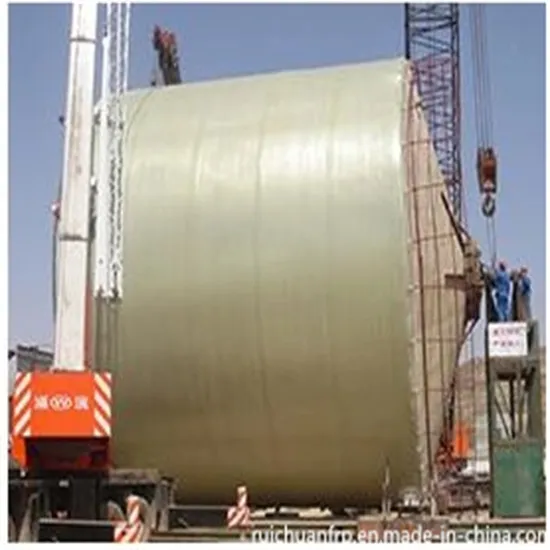

FRP tank is a kind of glass fiber reinforced plastic products. It mainly uses glass fiber as reinforcing agent and resin as adhesive. It is a new type of composite material that is made by winding a microcomputer to control a machine. FRP tanks are corrosion-resistant, high-strength, light-weight, and long-lived. Because they also have the characteristics of flexible design and strong processability, they can be flexibly designed for use in different industries such as: chemicals, environmental protection,food,pharmaceuticals, etc. In the industry, it is gradually replacing most of the market segments of carbon steel and stainless steel.
Product Parameters

Vertical FRP tank(Unit:mm)
Dia / Length/ Volume(m³)	1000	1200	1400	1500	1600	1800	2000	2200	2400	2500	2600	2800	3000	3200	3400	3500	3600	3800	4000	4200	4500
0.5	740
1	1380
2	2650	1890	1440
3		2780	2090	1850
4		3660	2980	2410	2150
5			3550	2980	2650
6				3550	3140
7					3640	2930
8					4140	3320
9					4630	3710	3060
10					5130	4100	3370
11					5630	4500	3690	3100
12						4890	4010	3370
15						6070	4970	4150
18						7250	5920	4940
20						8030	6560	5470
25							8150	6790
30								8100	6860	6340	5890	5130	4530	4030	3620
35									7960	7360	6830	5940	5240	4650	4170	3960	3770
40									9070	8380	7780	6750	5940	5280	4720	4480	4260	3880
45										9400	8720	7570	6650	5900	5270	5000	4760	4320
50											9660	8380	7360	6520	5830	5520	5250	4760	4350
55												9190	8070	7140	6380	6040	5740	5200	4750
60												10000	8770	7760	6930	6560	6230	5640	5140
65													9480	8380	7480	7080	6720	6080	5540
70													10190	9010	8030	7600	7210	6520	5940
75														9630	8580	8120	7700	6960	6340
80														10252	9130	8640	8190	7410	6730
85															9680	9160	8690	7850	7130
90															10230	9680	9180	8090	7530
95																10200	9670	8730	7930
100																	10160	9170	8330	7570	6670
110																		10050	9120	8290	7300
120																			9920	9020	7930
130																			10710	9750	8560
140																			11510	10480	9190
150																			12310	11210	9820
200																					12970

Horizontal container data (Unit: mm, N1 is the number of horizontal container supports, N2 is the number of vertical container legs
D	1000			1200			1400			1600			1800			2000			2200			2400			2600			2800			3000
m³	L	N1	N2	L	N1	N2	L	N1	N2	L	N1	N2	L	N1	N2	L	N1	N2	L	N1	N2	L	N1	N2	L	N1	N2	L	N1	N2	L	N1	N1
1	1450	2	3
2	2730	3	3	1990	2	3	1560	2	3
3	4010	4	3	2870	2	4	2200	2	4
4				3760	3	4	2850	3	4	2300	2	4
5							3500	3	4	2800	2	4
6										3300	2	4
7										3800	2	4
8										4300	3	4	3470	2	4
9										4780	3	4	3860	3	4
10										5300	3	4	4250	3	4	3540	2	4
11										5800	4	4	4640	3	4	3850	2	4
12										6280	4	4	5040	3	4	4170	2	4	3540	2	4
15													6220	3	4	5130	3	4	4330	2	4	3750	2	4
18													7400	4	4	6080	3	4	5120	2	4	4410	2	4
20													8190	4	4	6720	3	4	5650	3	4	4850	2	4	4220	2	4	3740	2	4
25																8310	4	4	6960	3	4	5960	2	4	5160	2	4	4560	2	4	4100	2	4
30																			8280	4	4	7060	3	4	6100	3	4	5370	2	4	4820	2	4
35																						8170	3	4	7050	3	4	6180	2	4	5520	2
40																						9270	3	4	7990	3	4	6990	3	4	6240	3
50																									9870	4	4	8620	3	4	7660	3
60																												10240	3	4	9050	3
70																															10470	4
80																															11880	4

Packaging & Shipping
Steel frame or wood pallet,framed ship
Our office


Our Advantages
1. Weight is light while the strength is high.2. Corrosion-resistance,anti-aging, long service life.By choosing different resins, the vessels and tanks can be used to store various acids, alkalis and salts.3. The coefficient of themal expansion is small while the heat insulation property is good.4. We are match many components, such as the fence, ladder and paltform for the products according to requirements.5. Inner surface is smooth and easy to be cleaned.6. No poison, no secondary pollution.
Company Profile
Ruichuan is composed of Hebei Ruichuan FRP Co., Ltd., Hebei Ruichuan Chemical Equipment Manufacturing Co., Ltd., Ruichuan (Ningxia) Environmental Protection Technology Co., Ltd. And Jiangxi Ruichuan FRP Co., Ltd. It is a modern comprehensive equipment manufacturing enterprise specializing in the production of FRP products.
Our main products:
FRP tank(vertical,horizontal and field wound FRP tanks),
FRP pipe and fitting,
FRP tower and flue and chimney,
PTFE lined steel tank,
HDPE/PO lined steel tank,
HDPE/PO lined steel fitting,
PTFE lined steel fitting,
Glass lined steel fitting,
Stainless steel tank
Certifications

FAQ
1. Q: Are you Trading Company or Manufacturing Factory?A: We are both manufacturer and trading company. We have our own factory for almost seven years, and we have better service of overseas customers. Welcome to send your inquiry!2. Q: How about the Delivery time?A: 60days after receiving the deposit based on the MOQ. Normally, 30-35days to finish the order for a 20ftcontainer. Welcome to ask for the detailed delivery time according to your order quantity!3. Q: How can you guarantee the product quality?A: We have the quality control system ISO9001:2015, and it's been followed strictly. We also have the professional QC team, and each our package worker will be in charge of the final inspection according to the QC instruction beforepacking.4. Q: What is about the payment terms.A: Basically, the payment terms are T/T, L/C at sight. Western Union, Alipay.5. Q: Can you do OEM for me?A: We accept all OEM orders,just contact us and give me your design,we will offer you a reasonable price ASAP.
