Epichlorohydrin Distillation Kettle 3000L Pressure Vessel Stainless Steel S30408 Chemical Reactor
| Negotiable | 1 Piece (MOQ) |
Basic Info.
Model NO.
FCHA
Type
Reaction Kettle
Material
Stainless Steel
Capacity
>1000L
Structure
Jacket
Pressure
Negative
Agitator Model
Customized
Tower Reactor Type
Customized
Heating
Water and Steam
Heat Transfer Structure
Jacketed
Automatic Grade
Automatic
Condition
New
Work Life
10 Years
Lead Time
2-3 Months
Heat Exchange Area
9.3m2
Power
7.5kw
Specification
3000L
Trademark
LUHAO
Origin
China
HS Code
84198990
Product Description
Vessel Volumn m³: 3.6 Material: S30408 Design pressure MPa: -0.1 Design temperature ºC: 150 Work pressure MPa: -0.08 Work temperature ºC: 105 Medium: EpichlorohydrinMedium feature: Highly hazardous and explosive Working life: 10 years Jacket Volumn m³: 0.93 Material: Q245R Design pressure MPa: 0.3 Design temperature ºC: 130 Work pressure MPa: 0.2 Work temperature ºC: 110 Medium: water, steam Heat exchange area m2: 9.3

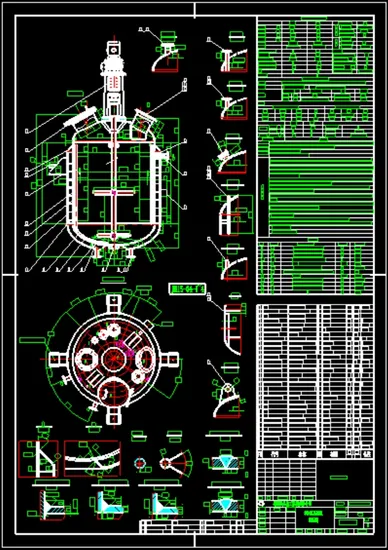

Total weight Kg: 2752 *For confidential reason, the drawing is in low definition. Please contact us for more information.
| CAPACITY | 1000-2000L | 3000-5000L | 6000-8000L | 10000-1 5000L | 15000-25000L |
| WORK PRESSURE MPa | -0.1-10.0 | -0.1-10.0 | -0.1-10.0 | -0.1-10.0 | -0.1 -8.0 |
| WORK TEMPERATURE C° | -15-320 | -15-320 | -15-320 | -15-320 | -15-320 |
| rpm | 0-320 | 0-320 | 0-320 | 0-320 | 0-320 |
| DC motor power W | 3.0-11.0 | 11.0-22.0 | 15-37.0 | 22.0-55.0 | 37.0-75.0 |
| Main materials | 09MnNiDR/16MnDR (low-temperature steel), 15CrMoR (high-temperature steel), stainless steel S30408/S32168/S31603, S39042, titanium material, duplex steel, shackle material, Hastelloy alloy, zirconium material, Monel, and other materials used for explosive composite plates. | ||||
| Heating form | Jacket thermal oil, jacket steam, outer half pipe, inner coil pipe; Electric heating/flue gas heating (435ºC). | ||||
| Mixing form | Disc turbine type, asymmetric turbine type, three blade impeller type, disc inclined blade, four wide blade, propulsion type, impeller type, anchor type, frame type, screw belt type, etc. | ||||
| Shaft sealing form | Magnetic coupling drive with static sealing, zero leakage, long service life, simple installation, safe and environmentally friendly. | ||||
| Remarks | Other special requirements, touch screen intelligent control, program control, and connection to DCS systems shall be designed, manufactured, and configured according to user needs. | ||||
