Good Reputation Reliable High Response New Style Servo Energy-Saving Plastic Injection Molding Machine Hxm2000

Good Reputation Reliable High Response New Style Servo Energy-Saving Plastic Injection Molding Machine Hxm2000

US$15,160.00-192,910.00 1 Piece (MOQ)

Basic Info.

Model NO.
HXM2000
Type
Injection Molding Machine
Structure
Horizontal
Plastic Type
PS,ABS,PP,PE,HDPE,PA,EVA
Plasticizing Way
Screw Type
Clamping Way
Hydraulic & Mechanical
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Voltage
380V/50Hz, According to Countries
After Sales Service
Engineers Avaiable to Service Machine
Injection Capacity in Theory
10775 Cm3
Injection Weight
9805 G
Moving Mould-Plate Stroke
1600 mm
Space Between Tie Bar
1620*1480 mm
Transport Package
Standard Package
Specification
15.6*3.5*4 M
Trademark
Highsun
Origin
China
HS Code
8477101090
Production Capacity
7000 Sets / Year

Product Description

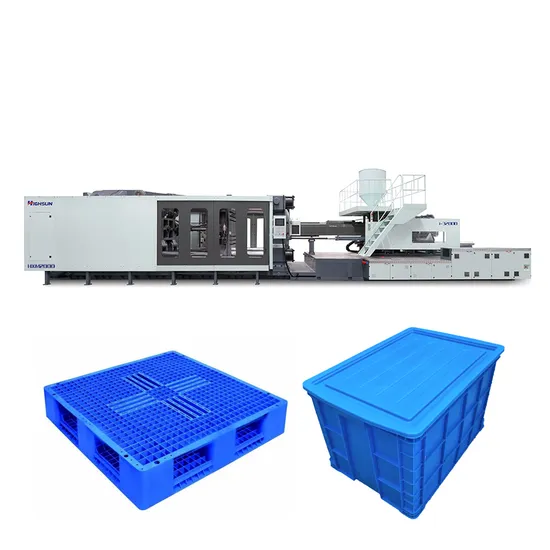

1.Picture
2. Specifications
MODEL: HXM2000
TECHNICAL PARAMETER TABLE A B C D
INJECTION UNIT SCREW DIAMETER mm 130 140 150 160
SCREW L/D RATIO L/D 23 22 21 20
INJECTION CAPACITY IN THEORY cm3 9291 10075 12370 14074
INJECTION WEIGHT(PS) g 8455 9805 11256 12807
oz 276.9 321.1 368.6 419.4
INJECTION PRESSURE MPa 204 176 153 135
INJECTION RATE g/s 1194 1385 1590 1809
PLASTICIZING CAPACITY g/s 109 130 150 162
SCREW SPEED rpm 90
CLAMPING UNIT CLAMPING FORCE KN 20000
MOVING MOULD-PLATE STROKE mm 1600
MAX. MOULD HEIGHT mm 1560
MIN. MOULD HEIGHT mm 710
SPACE BWTWEEN TIE-BARS (W*H) mm 1620*1480
HYDRAULIC EJECTOR FORCE KN 520
HYDRAULIC EJECTOR STROKE mm 400
EJECTOR NUMBER n 33
OTHERS PUMP PRESSURE MPa 17.5
MOTOR POWER KW 40+40+47+47
HEATING CAPACITY KW 103.5
MACHINE DIMENSION (L*W*H) m 15.60*3.50*4.00
MACHINE WEIGHT t 128
OIL TANK CAPACITY L 3500

3. Advantage
a. SUPER ENERGY SAVING
Output power varies with the load, and no energy is wasted. In the holding pressure phase, the servo motor willreduce speed, with low energy consumption; during the cool-down period, the motor does not work, with zero power consumption. Compared with the ordinary injection molding machines, it can save 20%-80% of the power.
b. HIGH PRECISION AND HIGH STABILITY
Equipped with the precise pressure sensor and rotary encoder, it can respectively monitor and feed back on flow and pressure. Based on the feedback, the high performance synchronous servo motor will adjust flow and pressure accordingly by changing the speed and torque. The closed-loop control can ensure the stability of product quality.
c. HIGH RESPONSE AND HIGH EFFICIENCY
The driving system responses with high sensitivity . It takes only 0.05 seconds to reach maximum value. The response speed is much faster than the ordinary injection molding machines. In that way, it significantly shortens the cycle time and increases the production efficiency.
4. Product Produced by Injection Molding Machine
5. Factory
We have six workshops, which are machine development workshop, machine storage workshop, spare parts storage workshop.
1 workshop: SP(Middle-speed injection molding machine) and HXYD(Fully-electric and high-speed injection molding machine) production R & D workshop, also stored in the injection molding machine production required parts.
2 workshop: HXM(Servo energy injection molding machine) and HXH(High-speed injection molding machine) production R & D workshop. Storage of manufactured machine, such as HXM 128tons, 158tons, 418tons, 478tons, HXH 260tons, 280tons, 430tons and so on.
3 workshop: HXM(Servo energy injection molding machine), PVC injection molding machine, PET injection molding machine, HXS(Clear two-color injection molding machine) and HXH(High-speed injection molding machine) production R & D workshop. Storage of manufactured machine, such as HXM 98tons, 268tons, from 538tons to 2500tons, HXH 160tons, 200tons, 350tons, 380tons, HXS160tons, 200tons and so on.
4 & 5 workshop: HIGHSUN's independent R & D workshop, automatic processing center. According to customer feedback to the performance of the machine constantly improve, to provide customers with better injection molding machines.
6 workshop: Stored in screw barrel, hopper, hydraulic motor, thermocouple, valve, sheet metal injection molding machine accessories.
6. Company Introduction
China top 1 plastic injecion molding machine
a. Honored with "Top 3" manufacturer of comprehensive strength by NBPMA over the past decade.
b. Established in 1973. Concentrate on Injection Molding field more than 50 years.
c. It covers an area of 1.2 million square feet.
d. Sold to more than 40 countries around the world.
e. Annual output more than 7000sets,ensuring faster delivery time.
f. Worldwide sales reached 130 million US dollars, exports maintain steady growth.
