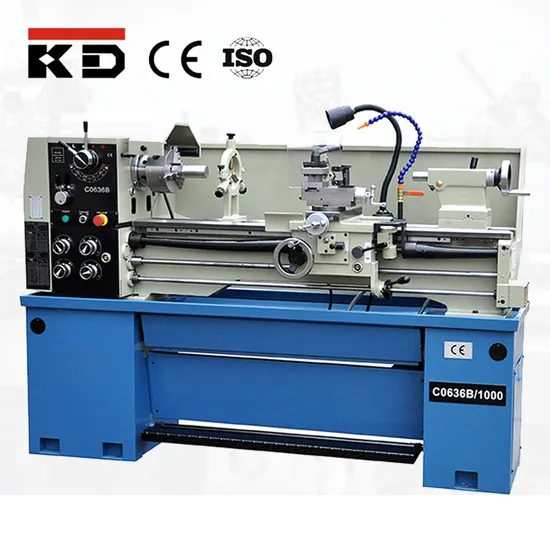

Gap Lathe (65mm Spindle Hole) with CE-Conformity (Cdb Series) C0636b
| US$3,000.00-50,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
C0636B/1000
Guide Rail
Hard Way
Tool Holder
4-Way Tool Station
Power Source
Manual
Controlling Mode
Manual
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Transport Package
1990X760X1435
Specification
1990x710x1170mm
Trademark
kaida
Origin
Zhejiang
Production Capacity
1200/Year
Product Description
Gap Lathe (65mm Spindle Hole) with CE-Conformity (Cdb Series) C0636b Product DescriptionProduct Specifications
| MODELS | C0632B | C0636B | |
| CAPACITY | |||
| Max. swing over bed | 330mm | 360mm | |
| Max. swing over gap | 476mm | 508mm | |
| Max. swing over slide | 185mm | 215mm | |
| Width of bed | 186mm | ||
| Max. length of workpiece (two centers) | 750/1000mm | ||
| SPINDLE | |||
| Spindle nose | D4 | ||
| Spindle bore | ะค38mm | ||
| Taper bore of spindle | M.T.NO.5 | ||
| Steps of spindle speed | 8 | ||
| Range of spindle speed | 70~2000rpm | ||
| FEED | |||
| Range of longitudinal feeds | 0.0013-0.0173in/r (0.026~0.348mm/r) | ||
| Range of cross feeds | 0.0005-0.00598in/r (0.007~0.094mm/r) | ||
| THREADING | |||
| Inch threads | 40~2 1/4 T.P.I/20 kinds | ||
| Metric threads | 0.45-10mm/ 28kinds | ||
| TAILSTOCK | |||
| Travel of tailstock quill | 95mm | ||
| Taper bore of tailstock quill | M.T.NO.3 | ||
| OTHERS | |||
| Main motor | 2HP(1.5KW) | ||
| Net weight/Gross weight(1000mm) | 495/595kg | 510/610kg | |
