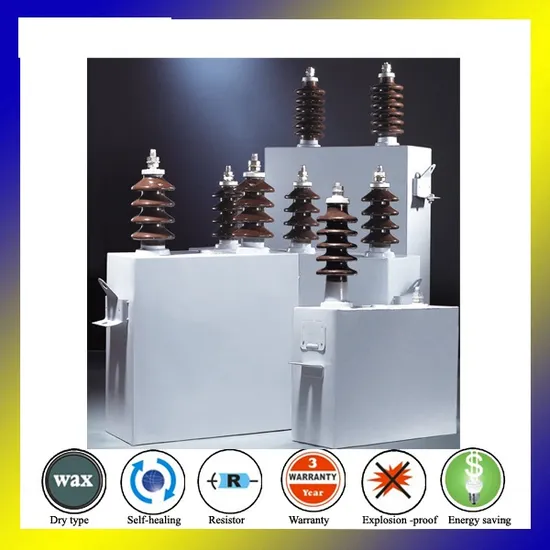

Bam11-200-1W High Voltage Shunt Power Capacitor Power Factor Correction

Bam11-200-1W High Voltage Shunt Power Capacitor Power Factor Correction

US$25.00-26.00 10 Pieces (MOQ)

Basic Info.

Model NO.
BAM11-200-1W
Packaging Type
Surface Mount
Capacitance
50-100uf
Structure
Fixed Capacitor
Manufacturing Material
Polypropylene
Electrolyte
Electrolytic
Usage
Low Frequency Coupling, Tuning, Filter, Low Frequency Bypass
Tuning
Polystyrene Capacitor
Filter
Composite Paper Capacitor
Compensate
Reactive Energy
Power Transformer
Prove Transmission Power Factor
Using Range
Motor or Inductive Power
Power Supply
Only Supply Reactive for Load
Warranty
2 Years
Di Electrical
50 Degree Solid Wax
Transport Package
Wooden
Specification
CE ROHS
Trademark
OEM
Origin
Zhejiang Yueqing
HS Code
85321000
Production Capacity
100000PCS/ Month

Product Description

High Capacity Capacitor 12kv Power Capacitor three phase Rated voltage :12kv capacity:100KVAR Capacitance(Uf=2.63) Rated current 9.1A
50~300kvar high voltage Power Capacitor *Explosion-proof power capacitor *30 seconds release electrical *film and paper compound medium High Capacity Capacitor 12kv Power Capacitor three phase specification
Series High Capacity Capacitor 12kv Power Capacitor three phase
Rated Voltage Range 6kv~12kv
Capacitor Connection 3 phase (1 phase on request)
Capacitor Frequency 50/60 Hz.
Capacitor Power Range 50~300 KVAR
Dielectric Metalized polypropylene film with self healing
Protection IP 42 (IP 54 on request)
Discharge Resistors Built in automatic discharge resistors included, less than 75V within 3 minutes
after de-energizing the capacitor
Tolerance ±5%
Maximum Ambient Temperature -25 °C--50°C (Other temperature range on request)
Average temperature within 24 hours below 40°C&average
temperature with a year below 30°C
Max. Relative Humidity ≤90%
Max. Altitude ≤2000m (Other altitude on request
Over Voltage Tolerance 1.1 UN (8 hours max. in every 24 hours)
1.15 UN (30 minutes in every 24 hours)
1.2 UN (5 minutes in every 24 hours)
1.3 UN (1 minutes in every 24 hours)
Over Current Tolerance 30% permanently
Max. Surge Current 200 times of rated current
Dielectric Loss ≤0.2 Watt / KVAR
Voltage Test Between terminals: 2.15 Un for 10 seconds.
Between terminals to container: 3000VAC for 10 seconds
Safety System Self protection device
Capacitor Case Material Rust-Proof painted steel
Execution Indoor, minimum distance between units : 50mm
Standard IEC60831 / GBT12747
Insulate level 6kv rated voltage class 30kv within 1 minutes no puncture and flash
10kv rated voltage class 42kv within 1 minutes no puncture and flash
No Type Rated
Voltage
(KV)		 Rated
Capacity
(Kvar)		 Rated
Capacity
(uF)		 Weight
(Kg)		 Size(mm) Drawing
No
A B D F L h1 h H
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15		 BFM6.3-20-1(W)
BFM6.3-30-1(W)
BFM6.3-40-1(W)
BFM6.3-50-1(W)
BFM6.3-100-1(W)
BFM6.3-120-1(W)
BFM6.3-150-1(W)
BFM6.3-200-1(W)
BFM6.6/ 3-30-1(W)
BFM6.6/ 3-50-1(W)
BFM6.6/ 3-70-1
BFM6.6/ 3-90-1
BFM6.6/ 3-100-1
BFM6.6/ 3-120-1
BFM6.6/ 3-150-1		 6.3
6.3
6.3
6.3
6.3
6.3
6.3
6.3
6.6/ 3
6.6/ 3
6.6/ 3
6.6/ 3
6.6/ 3
6.6/ 3
6.6/ 3		 20
30
40
50
100
120
150
200
30
50
70
90
100
120
150		 1.60
2.40
3.21
4.01
8.02
9.62
12.03
16.04
6.58
10.96
15.35
19.73
21.9
26.3
32.9		 11
14
16.5
19
31
35
45
54
14
19
24.5
28
31
35
45		 320
320
320
320
385
385
385
385
320
320
320
385
385
385
385		 110
110
120
120
145
145
145
170
110
120
120
145
145
145
145		 350
350
350
350
425
425
425
425
350
350
350
425
425
425
425		 200
200
200
200
270
270
270
270
200
200
200
270
270
270
270		 380
380
380
380
465
465
465
465
380
380
380
465
465
465
465		 90
100
140
170
210
260
350
400
100
170
260
190
210
260
350		 180
230
260
300
350
400
490
540
230
300
390
330
350
400
490		 350
400
430
470
520
570
660
710
400
470
560
500
520
570
660		 1
1
1
1
1
1
2
2
1
1
1
1
1
1
2
High Capacity Capacitor 12kv Power Capacitor three phase advantage
