Accurl QC12y-6X2500 CNC Hydraulic Shearing Machine with Rexroth Pump

Product Description

Accurl QC12y-6X2500 CNC Hydraulic Shearing Machine with Rexroth Pump
Product Description
Accurl Hydraulic Swing Beam Plate Shearing MachineACCURL MS7 Hydraulic Swing Beam Shear can cut all kind of metal sheet to maintain the highest production capacity with maximum precision and quality. More than just cutting; NC MS7 is developed by expert engineers of ACCURL reflects innovative technology with all aspects of it.
Standard Equipment:
1. Wear resistant blades for Top blade 4 cutting edge and Bottom blade 4 cutting edge.
2. Portable foot pedal is eligible for single and automatic cutting.
3. ESTUN E21s NC controller System.
4. NC controlled motorized backgauge system.
5. 600 mm motorized back gauge system with 0.1 mm accuracy.

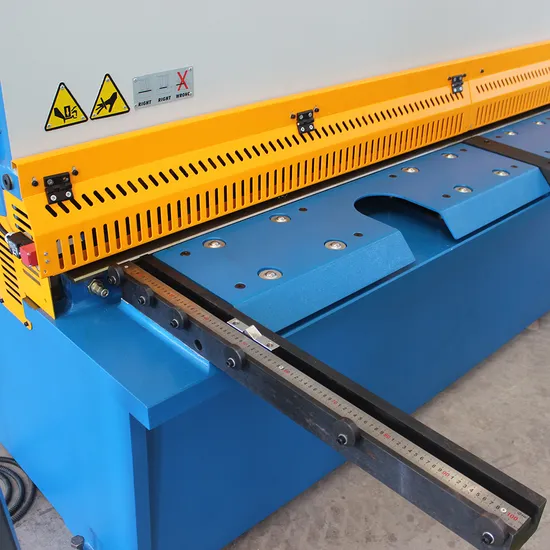

6. Front support arms with T slot, ruler and flip stop.
7. Squaring arm.
8. Scales with metric and inches.
9. Cutting line illumination and shadow line.
10. Central lubrication system.
11. Front finger protection guard appropriate to CE norms, 1 m left side collapsible and switch protected.
12. Rear sliding plates.
13. Front sliding plates with ball bearings on the table.Detailed Photos
MACHINE DESIGNACCURL Shears features a rigid frame for min deflection under the load. The frame steels are German origin and designed using SOLIDWORKS 3D programming and made with quality steel Improved Q235 using the latest technology.
Feature:
* The machine welding is made by welding plant and welding robots. * After the welding,we make stress relief process by vibration system. * After the stress relief process machine frame goes to CNC 5 axes machining centers for accuracy.* Allreference surfaces and connection holes are machined. Main Features
Name: SHEET PRESS CYLINDERS
Brand: ACCURL
Original: ACCURL
The ACCURL® cnc hydraulic shearing machine is equipped with cylinders which press on the metal sheet with an automatically regulate-able pressure which varies according to the pressure required by the thickness and consistency of the material to be cut. Machine Parts Name: HYDRAULIC SYSTEM
Brand: ACCURL
Original: CHINA
The ACCURL® cnc hydraulic shearing machine is equipped with a hydraulic system capable of simplifying the operator's work enormously and to facilitate all the adjustments necessary for obtaining the best quality cut. Made up of the highest quality, all European, components, the hydraulic unit is a guarantee of long life for the machine as.CNC CONTROL UNIT
* 7" widescreen TFT Colour LCD display * Back / front gauge control
* Panel based housing
* Retract function
* Cutting angle and gap control
* Stroke length limitation
* Manual movement of all axes
* Force control
* Return to Sender function
* Program memory for 100 programs
* Sheet support system. DAC360T CNC Control UnitACCURL has chosen the very powerful new generation DELEM DAC360T offers an higher level of efficiency in programming and control of guillotine. The winning MADE in Netherlands design and the high quality of all the construction details, guarantee prestigious performances and long product life.

Type	Cut Thickness mm	Cut length mm	Shear Angle Degree	SPM min-1	Back Gauge mm	Throat Depth mm	Main Motor kw
MS7-4×2500	4	2500	1°30'	≥ 22	600	100	5.5
MS7-4×3200	4	3200	1°30'	≥ 18	600	100	7.5
MS7-4×4000	4	4000	1°30'	≥ 12	600	100	7.5
MS7-6×2500	6	2500	1°30'	≥ 16	600	120	7.5
MS7-6×3200	6	3200	1°30'	≥ 12	600	120	7.5
MS7-6×4000	6	4000	1°30'	≥ 10	600	120	7.5
MS7-6×6000	6	6000	1°30'	≥ 7	600	120	11
MS7-8×2500	8	2500	1°30'	≥ 14	600	120	7.5
MS7-8×3200	8	4000	1°30'	≥ 12	600	120	7.5
MS7-8×4000	8	3200	1°30'	≥ 10	600	120	11
MS7-10×3200	10	3200	1°50'	≥ 12	600	120	11
MS7-10×4000	10	6000	1°50'	≥ 6	600	120	18.5
MS7-12×2500	12	2500	2°	≥ 10	800	170	18.5
MS7-12×3200	12	3200	2°	≥ 9	800	170	18.5
MS7-12×4000	12	4000	1°80	≥ 8	800	170	18.5
MS7-12×6000	8	6000	2°	≥ 4	800	320	30
MS7-16×2500	16	2500	2°9'	≥ 9	800	315	18.5
MS7-16×3200	16	3200	2°	≥ 8	800	320	18.5
MS7-16×4000	16	4000	2°	≥ 7	20-1000	320	18.5
MS7-16×6000	16	6000	2°	≥ 4	20-1000	320	22
MS7-20×3200	20	3200	2°30'	≥ 5	1000	320	30
MS7-20×6000	20	6000	2°30'	≥ 4	1000	150	55
MS7-25×2500	25	2500	3°	≥ 5	1000	325	37
MS7-25×3200	25	3200	3°	≥ 5	1000	325	37
MS7-32×2500	32	2500	3°30'	≥ 4	1000	350	45
MS7-32×3200	32	3200	3°30'	≥ 4	1000	350	45
