Middle Duty 20 Discs Harrow for 50 HP Tractor

Product Description

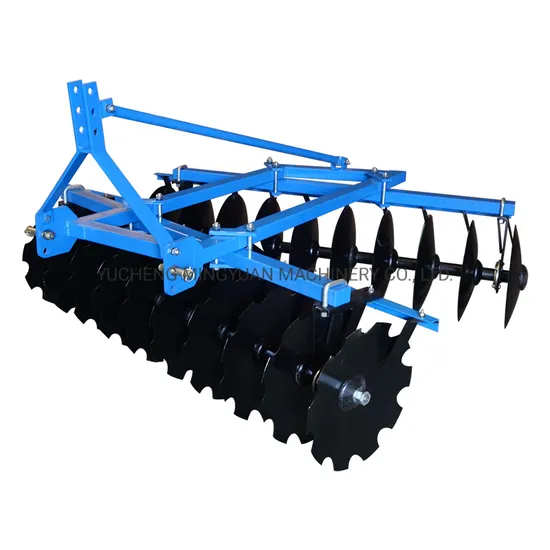

Middle Duty 3-Point 20 Discs Harrow For 50HP Tractor
1BJX series of offset tractor medium disc harrow is mainly applicable to clean the crop residue before tillage,break the hardened soil and return the chopped straw to the soil,and also can crash the soil after tillage and level the land.
It can be used as tillage machine instead of plow on the cultivated land.With the efficient productivity,reasonable utilization of the power,great ability of cutting and shattering the soil,the soil surface is smooth and loosening after harrowing,it is well suitable for heavy clay soil,waster land and weedy field as well.
Features:
It is mounted medium disc harrow for 30-80hp tractor..
The materail of plough disc is 65Mn spring steel,it is more strong.
Strong and durable bearing.
Fit the scraper for each disc blade to clean the objects.
The working depth can be adjusted freely.
Main Tech Data:

Model	unit	1BJX-1.8	1BJX-2.0	1BJX-2.2	1BJX-2.4	1BJX-2.5
Working width	M	1.8	2.0	2.2	2.4	2.5
Working depth	mm	140	140	140	140	140
Q'ty of disc		16	18	20	22	24
Disc diameter	mm	560	560	560	560	560
Total weight	kg	390	434	463	604	760
Matched power	hp	45	50	55~65	65~75	80
Linkage	Standard three-point mounted
