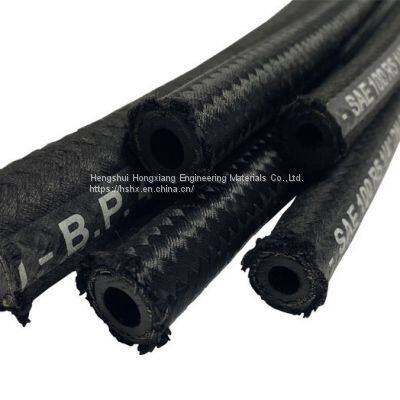

SAE 100 R5 Hydraulic Flexible Rubber Hose
Product Details
Product Details
Product Description
Product DescriptionThe SAE 100 R5 steel wire reinforced hydraulic hose has a braided fiber sheath for impact medium pressure hydraulic petroleum based oils, as well as superheated lube oil and water and air ducts.
Applicable Specification：SAE 100 R5
Working temperature: -40 °C to +100 °C; (-40 °F to +212 °F).
| Inside Diameter(ID) | Reinforcement Diameter (RD) | Outside Diameter (OD) | Max Working Pressure | Min Burst Pressure | Bend Radius | Weight | ||||
| DN | inch | mm | mm | mm | bar | psi | bar | psi | mm | Kg/mt |
| -12 | 3/4 " | 19.1 | 28.7 | 32.0 | 420 | 6090 | 1680 | 24360 | 267 | 1.64 |
| -16 | 1 " | 25.4 | 35.8 | 39.0 | 420 | 6090 | 1680 | 24360 | 300 | 2.13 |
| -20 | 1-1/4 " | 31.8 | 47.8 | 50.8 | 420 | 6090 | 1680 | 24360 | 420 | 3.87 |
| -24 | 1-1/2 " | 38.1 | 54.8 | 58.0 | 420 | 6090 | 1680 | 24360 | 500 | 4.74 |
| -32 | 2 " | 50.8 | 67.8 | 72.0 | 420 | 6090 | 1680 | 24360 | 630 | 6.75 |
