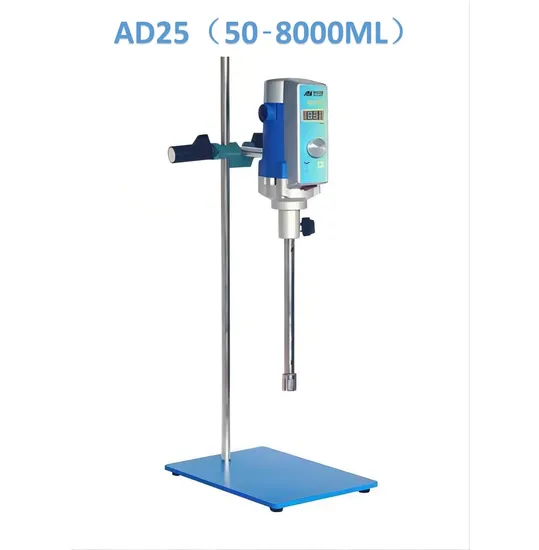

Lab Homogenizer for Pharmaceutical Emulsifying Mixer

Product Description

AD25 dispersion homogenizer is driven by high speed motor, suitable for low to medium, high viscosity liquid mixing or liquid medium material sorting, tissue cell crushing, etc. Drive output and work head positioning integrated structure, running state is more stable; The working head is made of high quality stainless steel, and the experimental application is wide. Operating speed micro-processing control, with instant compensation for load changes and power fluctuations caused by speed changes, constant speed is reliable; Built-in soft start, automatic overload protection, to ensure the safety of the experiment in a certain time full load continuous operation; Speed stepless adjustment, meet the experimental running speed correction at any time. Digital display speed intuitive, easy to collect experimental data; Run timing control to ensure effective control of experiment time.
Detailed Photos
Parameter of working shaft:

Working head	12G	18G	24G	30G	36G
Mixing capacity (H2O, ml)	30~800	50~1500	80~5000	100~8000	150~13000
Max viscosity(mPa.s)	5000	5000	5000	6000	7000
Max. rotation speed(m/s)	12	15	18	22	26
Min./max.immersion depth(mm)	35/150	45/160	50/165	60/170	65/175
Size of stator(mm)	Ø12	Ø18	Ø24	Ø30	Ø36
Legth(mm)	215	242	245	255	258
Max temperature(ºC)	120	120	120	120	120
Working head material	SS316L	SS316L	SS316L	SS316L	SS316L
